Ichlor 30 flow switch

Thanks for the info! I am going to try this when I get home. So I'll first leave the black to black and red to red connected and run it with the whites disconnected?

Yes.

But if that doesn't work and when I do the resistor, am I connecting it to the black and white coming from cell itself, not the flow switch black and white, correct? Thanks again.
Flow switch has 4 wires on cells manufactured before September 2018:
  • Red/black - flow switch
  • Green/white - temperature sensor
Flow switch has 3 wires on cells manufactured after September 2018:
  • Red - flow switch
  • White - temperature sensor
  • Black - common
Leave black and red connected between cell and assembly.

Disconnect white wire and connect 10K resistor between white and black on cell.

This assumes you have the 3 wire assembly.
  • Like
Reactions: andruwm

High Calcium HRdness

In Nevada no question we have hard water, but with a test at 1100 the advice was drain 61% of pool volume. Isn’t that going to throw off all other settings? Is there any other alternative?
Yes, but it is easy to recover. The only other alternative is Reverse Osmosis treatment. I'm not recommended any of these, but the service is available...

Intellicenter Schedule Question

S,

The pump should get constant AC power.. The cell is the only thing that needs to be on the load side of the pump/filter relay.

That is a very nice set up you have... :goodjob: :goodjob:

I have never seen so many valves all in the same spot!!! :mrgreen:

Tell me what kind of issues you are having with your spillover...

If you want, show me a pics of all the valves from the top.. I'd like to see if I can figure out what they do. :)

Thanks,

Jim R.

DIY Hybrid Pool Renovation

How did you feel draining the pool fully, regarding the pool popping or floating out? Did you know the relief valve existed before hand and pull it will draining? Did you only pull it after it was already drained?
I had little concern about draining my pool due to the geology of my area and the placement of the pool on my property. It does have a hydrostatic relief valve but it's currently put back in because I'd rather drain the water back out of the pool as I pressure wash it rather than flood the ground under my pool and risk creating a hollow spot.

Help! We have ordered a new above ground pool and it's just me who is halfway crippled and my elderly mother to put it up do you think we can do this?

You need to dig out all the grass into fresh undisturbed dirt and then use a thick tarp as a ground cloth, making sure there are no stones, rocks, or nutsedge weed left behind. You need to be within 3" of level everywhere which you can confirm by using a level on a long stiff wood plank.

As for putting it up, it's a workout. I'm reasonably in shape and its a full day of work to get my soft-sided pool setup. Lots of man-handling the parts. The smaller you go it gets way easier though, so keep that in mind. The labor is extremely simple and basic though so hiring someone and directing them on what to do is an option.

Also keep in mind that these pools usually have ladders which are rickety and a little dicey to use for those with mobility issues. You can work around it by buying stairs / building a deck.

Lowering TA

Fill water with a moderately high TA is probably contributing to the problem, here in the desert southwest.
SWG has 0 to minimal impact on pH rise. Your TA is the cause of the rise. Your Evap rate and water replacement with high TA is what you are fighting.

I wrote a thread just for you....

  • Like
Reactions: JamesW and stevo777


Looking for advice regarding pool plaster nightmare

Small update: Very strange situation with NPT. For the past 1-2 weeks I've been calling the Dallas center requesting they email their list of certified/approved plaster applicators to me. Each time I leave my email address and they say they'll send it "right now" but I never get anything. Called today and they said they actually don't have access to it and it has to be requested through a manager / corporate (???)

Very confusing to me. NPT is very shielded and loves to give the runaround. I'm not sure why. I have other issues regarding communication with them and especially their warranty process.

Not sure why a list of companies that apply their products would be such a secret or difficult thing to obtain.
  • Like
Reactions: HermanTX

AquaRite S3 Salt Reading Way High

I have the same system and mine read high with the "high salt alarm" from the time it was new until it was used for about 5 months. I knew my salt level was fine and searched the internet for reasons and even called Hayward (waste of time), but never found anything. It was working just fine producing chlorine so I gave up and let it go. Just within the last week or so it started reading more accurately to what I was getting through my testing, but still a little high.

Ichlor 30 flow switch

Disconnect the white wire and run the cell and see what the cell temperature reads.

If the cell does not work that way, get a 10K resistor and connect it between the black and white wires instead of the wires in the black cable. Cell temperature should read 76F. If it does not than the board in the cell is bad.
Thanks for the info! I am going to try this when I get home. So I'll first leave the black to black and red to red connected and run it with the whites disconnected? But if that doesn't work and when I do the resistor, am I connecting it to the black and white coming from cell itself, not the flow switch black and white, correct? Thanks again.

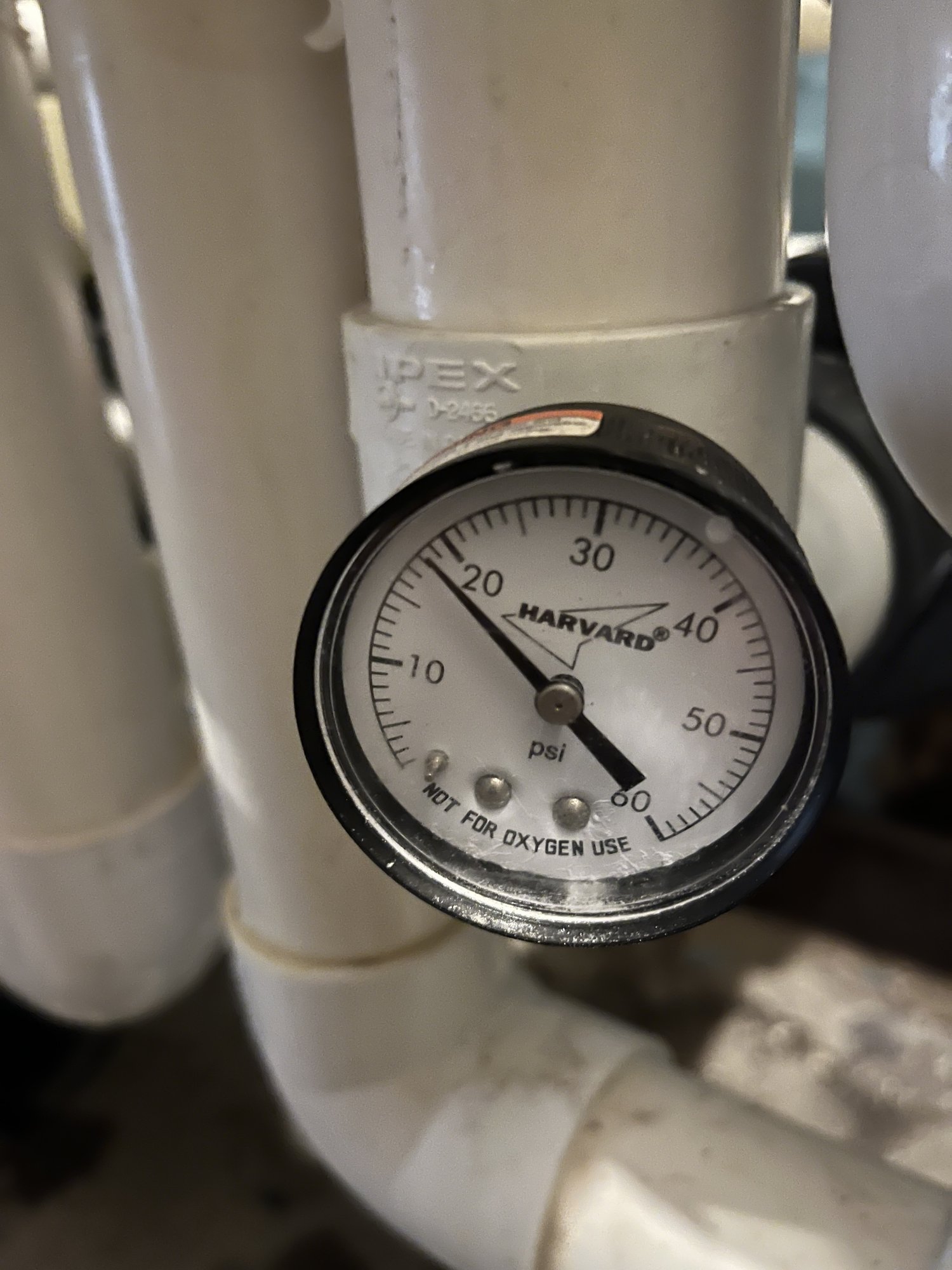

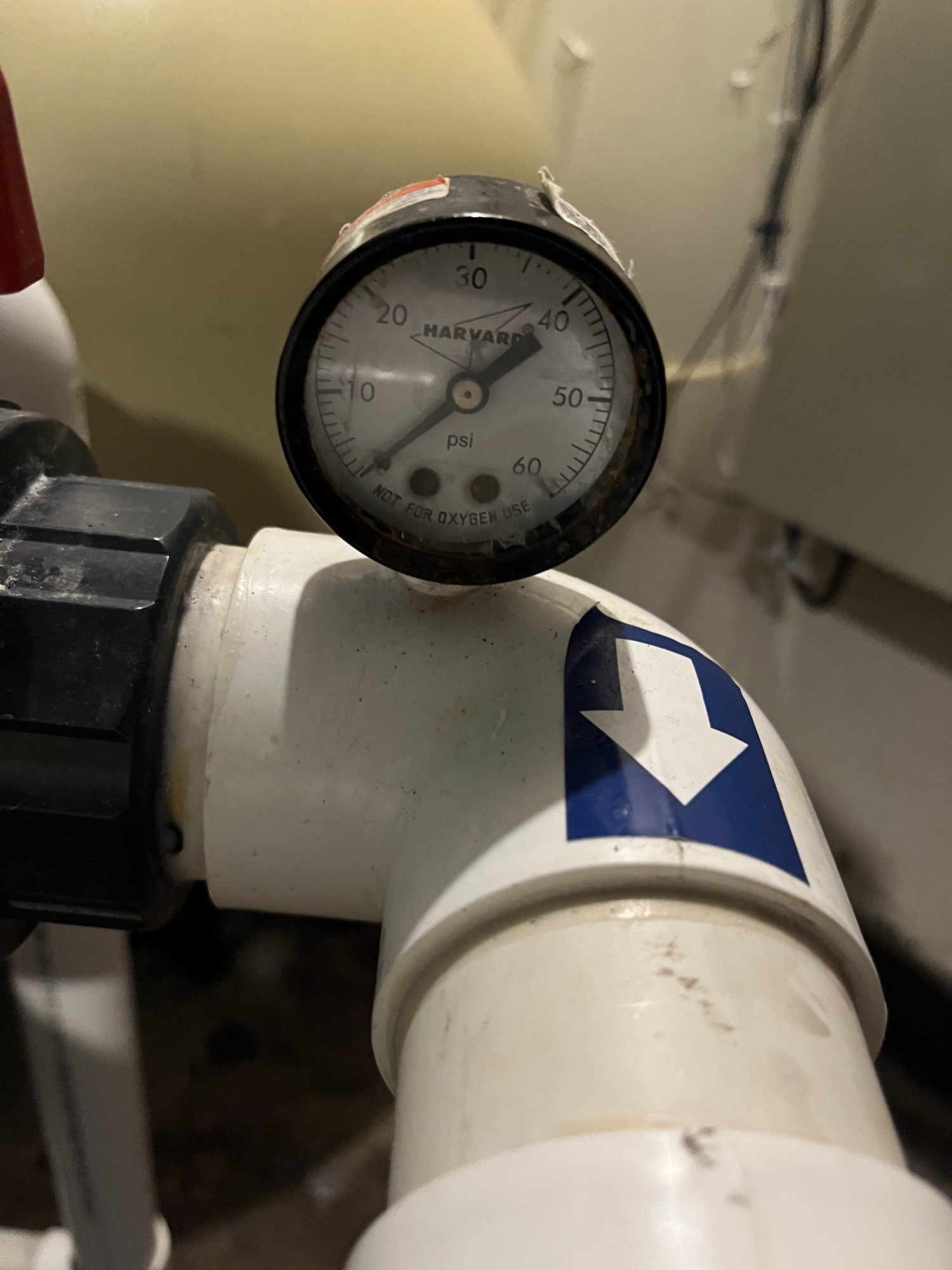

Cartridge Filter PSI is not stable

It is the largest residential cartridge filter which is great.
One suggestion is to purchase new filters (it’s a quad setup) and then start fresh.
You can soak the old filters in a solution of TSP. Then you have an exchange set which makes cleaning your filter much easier and quicker.
See Cartridge Filter Use and Care - Further Reading
So something like this?

It's one of the brands recommended by the further reading page you linked.

TriStar XE Not Working with ProLogic Automation

My pool was installed in 2011. My pump recently died and I cannot buy the same kind. I purchased a TriStar XE Series 2.25hp pump as a replacement for the old 1.85hp pump. The new pump does not use the neutral wire. I connected the two hot leads and the ground and turned on the breakers for the ProLogic system. The time of day is correct in the ProLogic system to run the pump and I have 120vac at each lug on the pump, but the green light on the pump does not light up, and the pump never starts running. If I bypass the ProLogic system and go direct from the GFCI breaker to the pump, the green light illuminates and the pump starts running.

What would cause the pump to not run when wired into the ProLogic automation system and delivering 120vac per leg, but yet run when it is wired directly to the GFCI breaker with 120vac per leg? It makes no since to me!

I need the pump to be controlled by the aProLogic system because I have a spa connected to my pool and need the pump to run at 100% when the spa is being used.

Thanks for your help.
