JamesW said:

View attachment 630113

Are the S1 and S2 measurements from S1 to Ground and from S2 to ground?

What was the voltage from S1 to S2?

The DC voltage should be 2 to 7 volts.

Each micro-amp of flame current produces 1.0 VDC.

For example, 2.6 VDC equates to 2.6 µA.

Are you sure about the readings?

Measure before call for heat, during the 20 second ignitor heating phase and during heater operation.

Click to expand...

You said check AC voltage S1 to ground and S2 to ground so those readings are AC. I did not check S1 to S2.

Do you want me to check S1 to S2 in DC or AC?

It just heated my 1,000 gallon spa from 70 to 100 in 45 minutes. Is that good?

Login to view embedded media
Login to view embedded media
Login to view embedded media
Login to view embedded media

AmberCrest said:

I might start a new separate thread on this directly related question but might as well kick it off here as it seems I'm suddenly in a serious time crunch.

I'm currently out of town and heard from my better half today that the Aqualink system seems to have forgotten it's time schedule. When set to Auto, it does not automatically power the pump on. In Service mode the pump can still be turned on.
As background, I set it to Service mode late last week as the Atlanta area was again going well under freezing and we already had one break this winter (possibly two). The system was running during the day and only doing freeze protect at night. At 14 degrees, that was evidently not enough.
We got past the hard freeze but now Auto seems to not do anything. With no control panel we're kind of stuck so time to pull the trigger.

The question - What is the story with buying the IQ30-RS kit online?
Most places seem to be carrying it for around $1200-$1400 but a lot of what I think are the 'more reputable' places imply or specifically say the kit is not available to purchase on-line due to manufacture restriction. For example, the InYo site states: "PER THE MANUFACTURER: THIS ITEM IS NOT AVAILABLE FOR SALE ONLINE"

There are a few places that list it for less, $1050-$1100 and while they will sell it, two of the three also seem to imply that the item is only for "pro" pool service purchase.
I've not called yet but marina pool spa and patio is seems to have it for $1000...

Thanks!

Click to expand...

I have purchased from Polytec Pools some Jandy items. Call them, and they will tell you to either order online or order on the phone (like be there in person).

I purchased my iQ30-RS kit from a local Pinch a Penny pool store. I purchase liquid chlorine and salt consistently from them, plus I had previously purchased my Pentair VS pump that was on a big sale at their store. They were willing to give me a good price for the iQ30-RS and I paid an extra $150 for installation. This was nearly 4 years ago so not sure about current prices.
Sometimes it may be worth it to pay the local price vs the risk of unknown from online dealers. Just an option for consideration.

start yourself a for-sale thread for that pi over in the "coffee bar" forum!

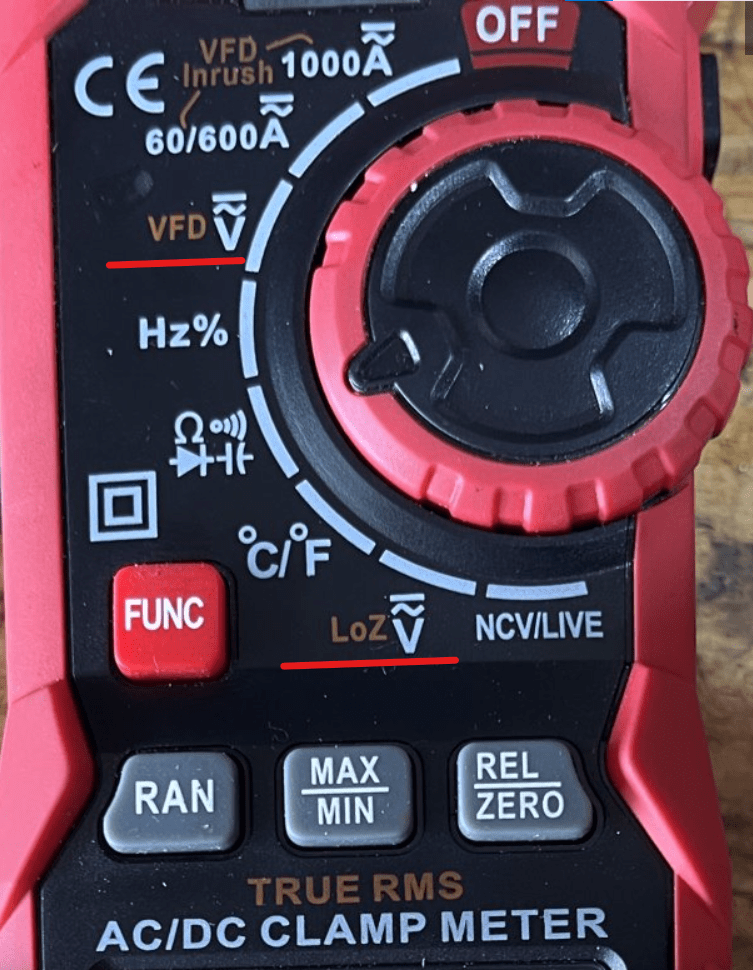

Which voltage setting did you use?

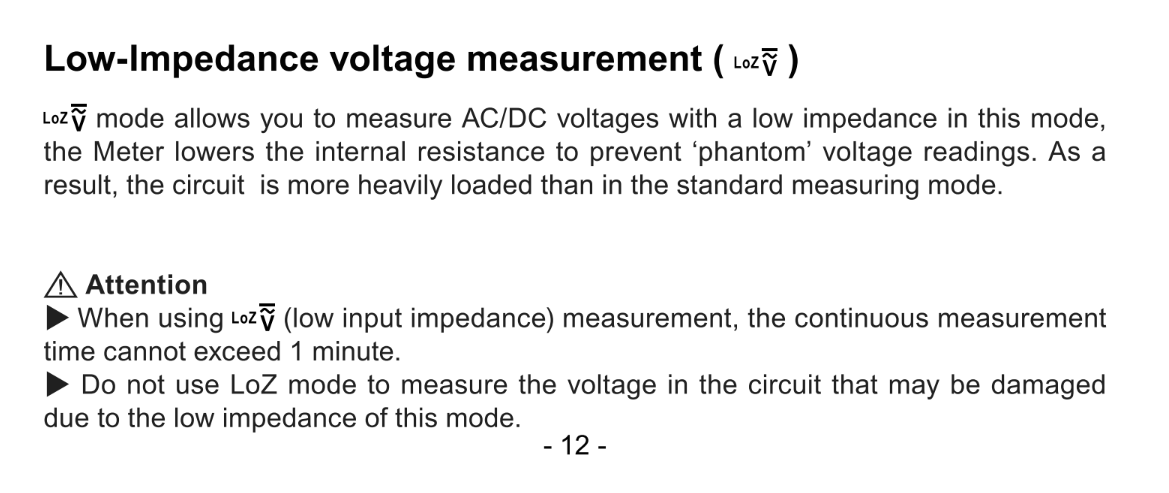

LoZ stands for Low Impedance (Z).

This feature presents a low impedance input to the circuit under test.

This reduces the possibility of false readings due to ghost voltages and improves accuracy when testing to determine absence or presence of voltage.

Most digital multimeters available today have an input impedance that's high enough to show the capacitively coupled voltage, giving a false impression of a live conductor.

The meter is actually measuring voltage coupled into the disconnected conductor.

However, these voltages, at times, can be 80-85% of what the "hard" voltage should be.

Set the skimmers (note that it's plural) to benefit from the prevailing winds so that debris actually gets to the skimmers. Make plans for shade. I wish I had accommodated a shade sail. Give yourself plenty of room around the equipment pad so you can work on the various parts. Put in an auto fill for sure, with soft water to it if possible or if needed in your area. +10 on the SWG chlorine generator. And get yourself a TFPro testing kit before the pool is finished because the kit the builder will give you is wimpy and you do not want to be visiting any pool stores to get sucked into their business plan.

JJ_Tex said:

At $500+ a pop

Click to expand...

Pun intended ?

Are the S1 and S2 measurements from S1 to Ground and from S2 to ground?

What was the voltage from S1 to S2?

The DC voltage should be 2 to 7 volts.

Each micro-amp of flame current produces 1.0 VDC.

For example, 2.6 VDC equates to 2.6 µA.

Are you sure about the readings?

Measure before call for heat, during the 20 second ignitor heating phase and during heater operation.

Here is my next pool list:

• 2nd skimmer
• I would research lights better and not sure I would have gone with my fancy color changing LED lights since 3 of the 4 had to be replaced under warranty. At $500+ a pop, I'm almost scared to use them now.
• That landscaping I didn't do during the build because I was tired of spending $ and could do it myself, still has not been done 4 years later.

@stevepoint
Thank you so much for this thread! I know it's been a while, but I hope you still check in occasionally! I am currently building a pool and I have this exact issue and I'd like to follow your method, because it turned out great! I am trying to understand some details about the aluminum trays. Is each tray independent, or are they welded together? If they are separate trays, then each tray sits on its own bracket, right? Hypothetically, if you made a bigger tray, you could have more coping tiles per bracket, but then they might be too heavy to lift?

Does anyone currently visiting TFP have any thoughts/ideas ?

JamesW said:

Undo these 2 unions and see if the check valve flap is ok.

View attachment 630041

Click to expand...

Ok, new day and less problems. I'm not sure what happened overnight but it's now back to igniting and cycling. Interesting thing is I timed the cycles and they started getting longer and longer before cutting off. I took the measurements you requested the best I could. See attached picture of everything written down.
Two questions..
1) Is there anywhere to check the exit temperature to see if that is whats causing it shut down?
2) It does heat my spa from 70 - 95 degrees in about 45 minutes even with the cycling. Is the cycling causing more propane to be used or it just a matter of taking a little longer to heat the spa as opposed to if it were running constantly?

Perhaps the final update for this thread. Although I cant say why, or 100% for certain, the screenlogic adapters seem to have somehow been causing the problem. I disconnected the screenlogic for a few days and did not notice any phantom starts on the pump. Then I shut everything down on the screenlogic and rechecked all the wiring and connections, I brought it back up a week ago and haven't had any phantom starts that I've noticed since then. I've been sleeping with the door open for a few nights and typically within a week I would have experienced the issue several times by now. Unless something changes, I'll call this one resolved. Anybody want to buy a Raspberry PI fully configured ?
