Intellicenter not following Pool schedule, when Spa is being used during schedule end time

D
It only happens to me when I turn on the spa while the pool is scheduled and on, and the pool schedule ends while the spa is on. When the spa turns off (either manually or when its egg timer expires), the pool resumes but after its scheduled end time so it never turns off. Manual override and manual heat are also both disabled on my system, maybe this is related.

All the other scenarios mentioned do work correctly.
Click to expand...


J


J


J

Pentair Intellicenter firmware 3.002

D
SA Pentair User said:
I finally took the plunge and updated to 3.002 yesterday. Some comments below.

The multi expansion panel bug that reared its head in 2.026 is gone :)

Most of the other bugs that appeared in 2.006 and 2.017 appear to have been fixed.

Integration with Control4 via the official driver was a little scary and required two reboots of the IntelliCenter and one reboot of Control4 to start working properly but has been rock solid for 24 hours now.

I haven’t tested multiple IntelliBrite lights yet to see if the problems (with large numbers of such lights over multiple panels) from v1 and v2 are still present as I converted these to generic lights in Pentair a few weeks ago (as reported elsewhere) and moved the colour control from Pentair to Control4 to get stability.
Click to expand...
I noticed this a few days later. At first glance it looked to be working fine with temps and status of circuits showing in C4 but I couldn’t turn my SPA on a few days later until I rebooted Director.
Click to expand...

Not getting power to Mastertemp400

J
JumpingGecko said:
The control panel on my Pentair Mastertemp400 heater has stopped getting power. I’ve read other post trying to fix this myself, but I’m at a point where I don’t know what to check next. Any guidance would be much appreciated.

My system is about 15 years old and it’s a Pentair Easytouch control panel connected to a Mastertemp400 heater. We use the heater several times a week and it has been working fine for the last couple of years. I know that I have to have the spa on for the heater to get power. When I press the ‘spa’ button I no longer see “HEATER” displayed on my easy touch control panel and no lights light up on the heaters control panel.

Here is what I’ve done so far:

I checked the voltages on the heater and I’m getting 220VAC input and 28VAC out of the transformer. I checked the plugs to the control board and the 4-pin connector at J7 has 28VAC and the 5-pin connector at J1 has 0VAC (brd_vac.jpg attached). At this point I thought the control board was bad so I replaced it. The issue remained. Still no power. Next, I checked the wire between the easytouch control panel (J19) and the heaters firemans switch. I used a multimeter with audible continuity and verified that each screw post on J19 had continuity to the firemans switch post and they were not shorted together (fsw.jpg attached). What do I check next? I’m out of ideas.

Thanks,
-Mike
Click to expand...
I forgot to mention the fuse by the firemans switch is not blown.
Thanks,
Mike
Click to expand...

Main Drain to Skimmer Valve Ratio

proavia
Do you have two skimmers?

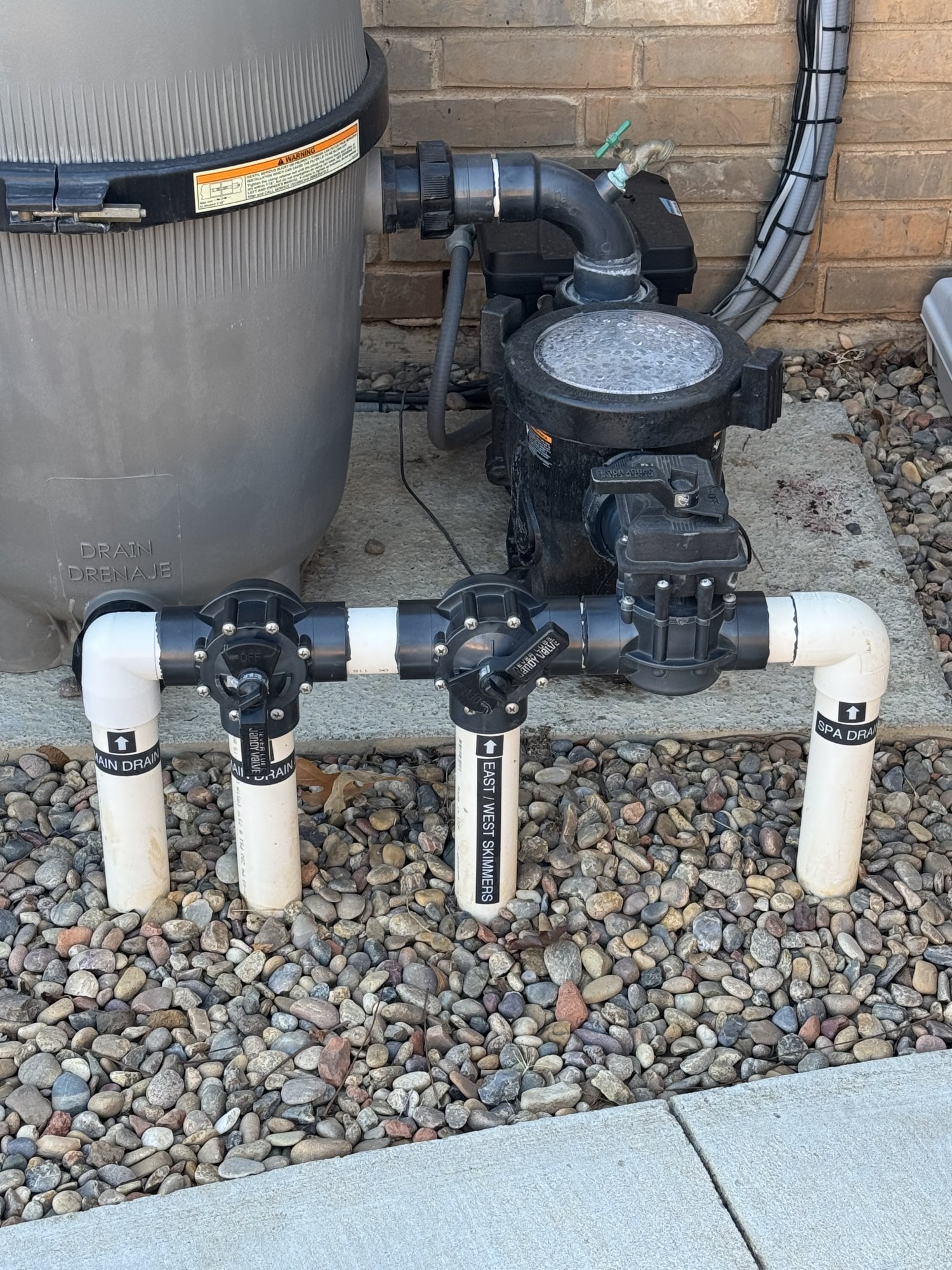

Interesting you have two pipes marked as Main Drain. Usually, even though you may have two drain covers on the pool floor, they are plumbed together and only one pipe for main drain is at the equipmemt pad.

Usually the valves should be set to pull at least 70% (or more) from the skimmers to maximize skimming the pool surfafe and capturing debris before it settles to the pool floor. For a pool without an IFCS, probably 80%-90% skimmer would work best.
Click to expand...

Brand New Max e Therm burning through igniters literally

J
The purple dots are the 24 VDC coil.

When the power input is 240 volts, the ignitor is powered by S1/240 and S2/FS instead of S1/120 and S2/FS.

This is changed by the voltage selector plug (Red or Black).

The Voltage Selector Plug also changes the Blower Windings from Series (For 240 Volts) to Parallel (For 120 Volts).

The Voltage Selector Plug also changes the System Transformer Windings from Series (For 240 Volts) to Parallel (For 120 Volts).


Manufacturer: SANYOU

Manufacturer part number: SMI-S-224L

Type of relay: electromagnetic

Contacts configuration: DPDT

Rated coil voltage: 24V DC

Contact current max: 8A




Hulaomr said:

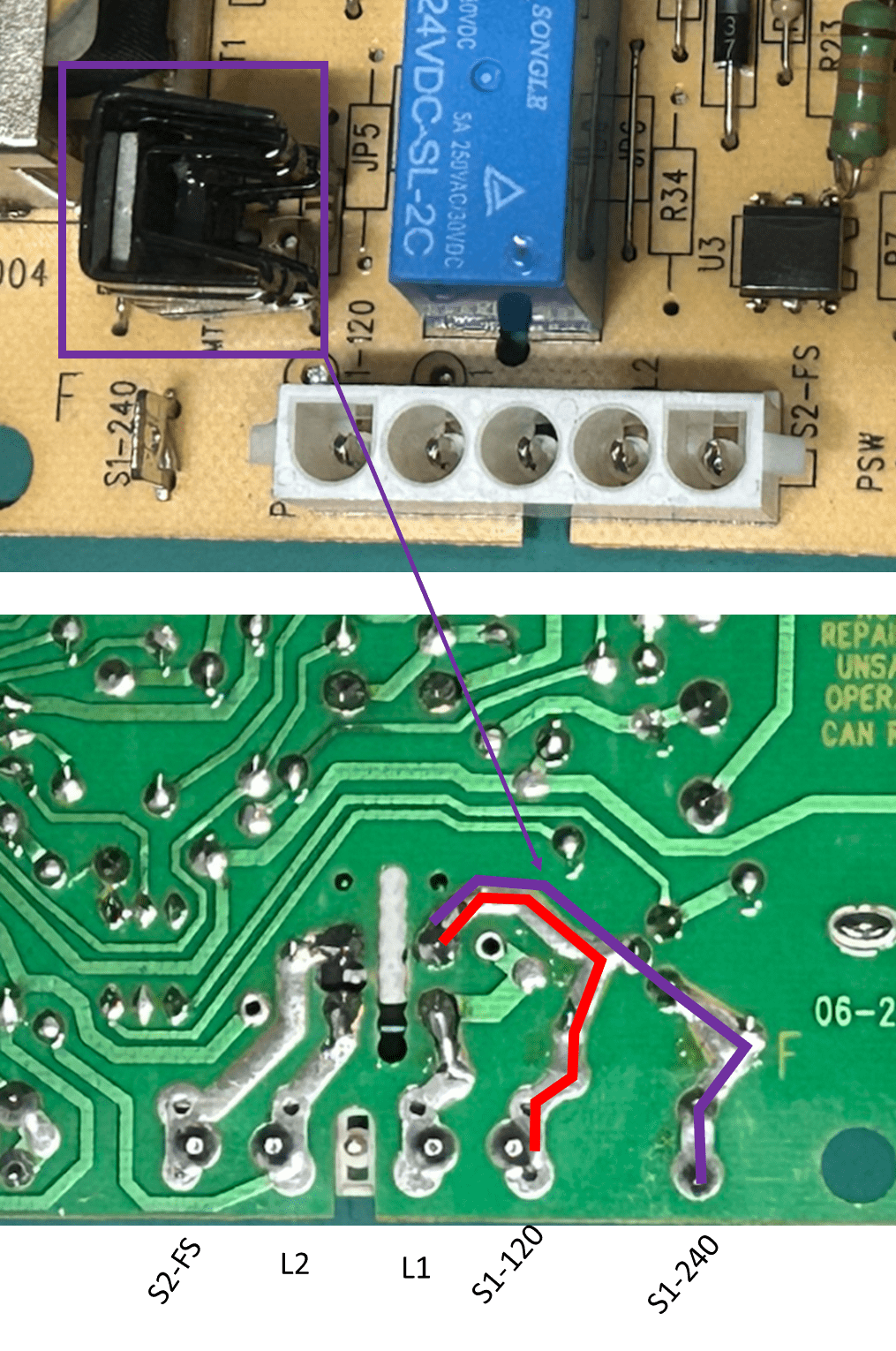

When the heater is operating (connected to) in 240Vac, the IC MT1 (in purple box) is switching the input L1 to get 120Vrms in the ignitor. The picture diagram shows the L1 circuit route: a) red (110V direct) and b) purple (240V switching by MT1).
Click to expand...

Click to expand...

Attachments

  • 1740842158108.png
    591 KB · Views: 0
  • Like
Reactions: Hulaomr


J


J


J


J


J


J


S


S


S

Best robot for pool

S
I've just purchased a home with a pool, and have never owned or cared for one before. I've got a few questions I'm hoping someone could help with. First it's an older pool and has an older style as far as the deep end. It has a diving board and is deepest right in front of it, not a uniform slope from the shallow entry side. I hope that makes sense. From my research I think this is called a well, but unsure. I'm wanting to get something to help keep it clean. I have read that poolskims are really good but have to be connected to a return. I cannot find any return holes in the pool. It has the drain at bottom of deepest part in front of diving board and the skimmer. I was thinking a pool robot vacuum but unsure what would be the best one for this style of pool. I'm concerned it would just get stuck in the deep part as the sides are quite steep. Seem steeper than modern pools.
Also I have no clue how many gallons it is and the construction makes it harder for me to guestimate with the slope not being the whole width of the deep end. Ive included photos if anyone could give me their best guess id appreciate it 😁
If anyone has any tips in general on pool care I need those too. I'm in a little over my head with it all haha
Thank you for any and all help!
Click to expand...

Attachments

  • Screenshot_20250301-092123.png
    565.4 KB · Views: 31
  • Screenshot_20250301-092119.png
    580.8 KB · Views: 27
  • Screenshot_20250301-092108.png
    617.6 KB · Views: 26

Not getting power to Mastertemp400

J
The control panel on my Pentair Mastertemp400 heater has stopped getting power. I’ve read other post trying to fix this myself, but I’m at a point where I don’t know what to check next. Any guidance would be much appreciated.

My system is about 15 years old and it’s a Pentair Easytouch control panel connected to a Mastertemp400 heater. We use the heater several times a week and it has been working fine for the last couple of years. I know that I have to have the spa on for the heater to get power. When I press the ‘spa’ button I no longer see “HEATER” displayed on my easy touch control panel and no lights light up on the heaters control panel.

Here is what I’ve done so far:

I checked the voltages on the heater and I’m getting 220VAC input and 28VAC out of the transformer. I checked the plugs to the control board and the 4-pin connector at J7 has 28VAC and the 5-pin connector at J1 has 0VAC (brd_vac.jpg attached). At this point I thought the control board was bad so I replaced it. The issue remained. Still no power. Next, I checked the wire between the easytouch control panel (J19) and the heaters firemans switch. I used a multimeter with audible continuity and verified that each screw post on J19 had continuity to the firemans switch post and they were not shorted together (fsw.jpg attached). What do I check next? I’m out of ideas.

Thanks,
-Mike
Click to expand...
