Pentair iChlor30 - Lost communication

Jump to latest Follow Reply
G

goherd90

Active member
Mar 26, 2024
25
Florida

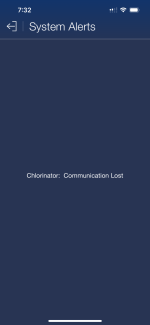

Just recently started to happen. I have an IC30 SWG system and the STATUS - FLOW light blinks green (picture show solid but its blinking), error message stating lost communication to the Chlorinator and its show )ppm for salt. Not sure what the issue is or might be. I did put into service mode and the lights went out on the cell....did not see any mention of RPM's on the message display. Some water is leaking out of where the cell tightens but not alot. This has been going on for a month or so that I've noticed and since it was not a lot and everything was functioning I just left alone. Not sure if this is causing the issue?
Any suggestions would be appreciated.IMG_2130.jpgIMG_2131.PNGIMG_2132.PNG

Last edited:
goherd90 said:
I have an IC30 SWG system and the STATUS - FLOW light blinks green (picture show solid but its blinking),
Click to expand...

That is fine. The manual says:


goherd90 said:
error message stating lost communication to the Chlorinator and its show )ppm for salt.
Click to expand...

There is a RS-485 comm cable connecting the iChlor Power Center with the EasyTouch.

You need to check both ends of the cable and see that it did not get cut or disconnected.

goherd90 said:
I did put into service mode and the lights went out on the cell
Click to expand...

That is the correct behavior with the ichlor powered from the filter pump relay that turns OFF in SERVICE mode.

goherd90 said:
....did not see any mention of RPM's on the message display.
Click to expand...

I don't know what you are looking at there?

goherd90 said:
Some water is leaking out of where the cell tightens but not alot. This has been going on for a month or so that I've noticed and since it was not a lot and everything was functioning I just left alone. Not sure if this is causing the issue?
Click to expand...

That is a common failure of the iChlor cell.

The water leak is not causing the Communication Lost.

thanks for the detailed response.....I checked the RS cable and all looked good w/no cuts etc. I then opened up the chlorinator control/power box to where the 4 pin rs cable connects and again all the wiring looked good. I even pulled the fuse to see if it had blown. At this point, I guess I may need to have a professional come and look at it???

goherd90 said:
thanks for the detailed response.....I checked the RS cable and all looked good w/no cuts etc. I then opened up the chlorinator control/power box to where the 4 pin rs cable connects and again all the wiring looked good. I even pulled the fuse to see if it had blown. At this point, I guess I may need to have a professional come and look at it???
Click to expand...
Show us pictures of the connections on both ends of the cable you checked. Show us the boards they are attached to.

mknauss said:
Inside. Drop the top panel. Need to see the surge card.
Click to expand...
Surge card should be in the Power Center box and not in the EasyTouch.

  • Like
Reactions: mknauss
ajw22 said:
Show us pictures of the connections on both ends of the cable you checked. Show us the boards they are attached to.


Surge card should be in the Power Center box and not in the EasyTouch.
Click to expand...
will do....how do i check connection to the chlorinator itself...I didnt check that connection only the connections with the 4 pins going into the control box and that there was no visible cuts in the line

As Allen mentioned, you have a separate power center for the iChlor. Take a picture with cover off of that.


Enjoying this content?

Support TFP with a donation.

Give Support
If all those RS485 connections are good, you have an issue with a RS485 chip. Either the iChlor or the surge card.

I assume other RS485 items work on the Easytouch. So most likely surge card. They will just replace it. You can buy them online.
See if Allen or Jim have ideas.

goherd90 said:
they all look good.....ugh..this sucks. Guess will have to get a pro out here to diagnose. What am i looking at cost wise for these parts

can i buy online and replace myself or best to get pro out here?
Click to expand...
Can you use a screwdriver and plug in wires?

The "Pro" service call will cost you almost as much as the board. If you can do it, buy the board and pop it in and see if it fixes your problem.

ajw22 said:
Can you use a screwdriver and plug in wires?

The "Pro" service call will cost you almost as much as the board. If you can do it, buy the board and pop it in and see if it fixes your problem.
Click to expand...
haha...got it. Quick question..even though the board has a green light it still can be the PROBLEM? How can I determine the exact model/board I need.....sorry for the dumb questions
