  1. tjk65

    Major Air leak

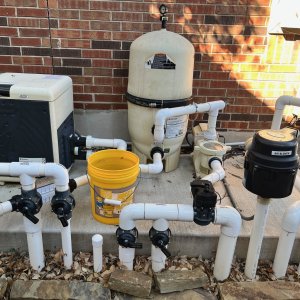

    Ok back at this. We have narrowed down where air leak is at. It is at the spa/pool return. If we turn spa return or pool return completely off the air goes away. But if we set that both are open tons of air in the system. Pictures of value. Why does the pool return have a value and the spa...
  2. IMG_1736.JPG


  3. tjk65

    Major Air leak

    We clean our filter about every three months. We had just cleaned as we replaced the o ring in the filter and the pump hoping one of them was the issue. The issue seems to be with the spa suction and this auto value. If we turn it 90 degrees then back you can hear the big swish and then see a...
  4. IMG_1718.JPG


  5. tjk65

    Major Air leak

    A few preliminary questions: - Water level good in pool - halfway to 3/4 up the skimmer opening? Yes 1/2 way - Skimmer weir door not getting stuck closed? no - Do you use a skimmer sock? Any chance something has caused a partial clog? Yes use socks, yes possible we get tons of leaves and sticks...
  6. tjk65

    Major Air leak

    Need help. My pool has a major air leak and not sure where to start. Things I have already done. 1) Changed filter o ring and lubricated replacement 2) Changed pump o ring and lid 3) Tried turning off main drain and only left skimmer on 4) Tried turning of skimmers and leaving main drain on...
  7. IMG_1681.JPG


  8. IMG_1682.JPG


  9. IMG_1683.JPG


  10. tjk65

    Easy touch appears working but pump has no power

    We were able to determine the drive board shorted out. Ugh! Now, if my pool builder will bother to answer so we can file a warranty claim. Had to have pool surface done three times so we are not on best terms.
  11. tjk65

    Easy touch appears working but pump has no power

    So, If all the tests come out, is pump dead? Pump is 3 years old. Is there an easy way to by pass the panel and see if pump will work. Doesn't seem to be panel as all other things on it are working.
  12. tjk65

    Easy touch appears working but pump has no power

    Do have a voltmeter. Turned off all breakers let it sit then turned on all. There is 220 v going to pump. There is 4.75v going to pump keypad. Will try the other tomorrow and come back.
  13. tjk65

    Easy touch appears working but pump has no power

    Came home from work and pool pump was not on. The swg was flashing low flow as pool pump not on. There are no lights on pump screen. Easy touch appears to be working as chlorinator is on and thinks pump is on. Pump for fountains comes on and works at easy touch and thru app. How do I test...
  14. tjk65

    Freeze protection not cycling

    I have ScreenLogic 2 and Pentair VSF. I have a built in spa with a spill over. In settings I checked freeze protection for my pool and spa but it is not cycling. It goes in spa mode and stays there. Any ideas what could be causing this?
  15. tjk65

    New pool, Bicarb start-up 3 weeks in

    Thank you for telling me to retest. Bone head move multiplied by 10 instead of 25. I am at 300. I am doing the 10ml test.
