Hi TFP friends. I’m in the midst on a pool renovation (tile and plaster) and am repurposing a vacuum line that I don’t use for a nicheless light. I’m trying to figure out if I have an available AUX line to connect the new light to, because it is a different brand and has a different sequence than my existing light. On my control panel, it appears AUX 6 and AUX 7 are available. But I’m having trouble identifying the proper line-out for either of these to connect the new light. Based on these images, can anyone point me in the right direction?
Wiring help with Pentair Compool Easytouch
- Thread starter ChadJ
- Start date
- Jul 21, 2013
- 52,841
- Pool Size
- 35000
- Surface
- Plaster
- Chlorine
- Salt Water Generator
- SWG Type
- Pentair Intellichlor IC-60
Find which relays are plugged into J14 and J15.
Then follow their wires back to the connector block for the relays.
Then follow their wires back to the connector block for the relays.
Thank you so much for the quick reply! I’m having trouble figuring out how the diagram maps to the wires in the other picture. Based on the wires, it looks like all the AUX ports have wires coming from them. On my controller, they look unassigned. Based on the picture, can you tell if these ports are already occupied?
Chad,
It appears to me that your old system has 5 relays... Pump/Filter relay and then Aux 1, 2, 3 and 4 relays.. Your Aux 5 has no relay and I suspect it just changes the pump speed, so no relay is required.
To use Aux 6 or 7 to drive a light, you will need to add a relay.
Thanks,
Jim R.
It appears to me that your old system has 5 relays... Pump/Filter relay and then Aux 1, 2, 3 and 4 relays.. Your Aux 5 has no relay and I suspect it just changes the pump speed, so no relay is required.
To use Aux 6 or 7 to drive a light, you will need to add a relay.
Thanks,
Jim R.
Jim, yes, AUX 5 is labeled “High Speed” and puts the pump speed up. I use this occasionally to bump up the circulation, but if there is a smarter way to control it, I’d be happy to repurpose that relay for the light. Would that be a possibility?
- Jul 21, 2013
- 52,841
- Pool Size
- 35000
- Surface
- Plaster
- Chlorine
- Salt Water Generator
- SWG Type
- Pentair Intellichlor IC-60
Chad,
www.poolsupplyunlimited.com
Jim R,

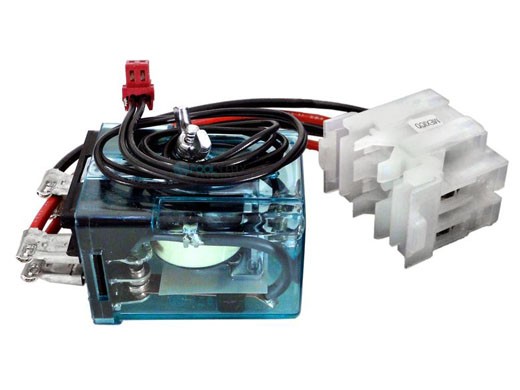

Pentair Compool Relay Kit 20 AMP DPST | RLYLX
Pool Supply Unlimited has some of the best prices when shopping for Pentair Compool Relay Kit 20 AMP DPST | RLYLX
www.poolsupplyunlimited.com
Jim R,
- Jul 21, 2013
- 52,841
- Pool Size
- 35000
- Surface
- Plaster
- Chlorine
- Salt Water Generator
- SWG Type
- Pentair Intellichlor IC-60
Chad,
Pentair Compool Relay Kit 20 AMP DPST | RLYLX
Pool Supply Unlimited has some of the best prices when shopping for Pentair Compool Relay Kit 20 AMP DPST | RLYLX
Jim R,
Half the price on Amazon but does not include wire harness that Chad needs.
Ahhh, thanks guys. Now I understand. Think I have a plan B. My blower has been dead for years and we never really use it anyways. I’m going to repurpose that output/relay and, if I decide down the road that I want a blower, I’ll address it then. Thank you all for being a tremendous and helpful resource!
