Joining pvc to metal pipe
- Thread starter Sharonjh
- Start date
When I hit it with a shovel it felt harder than pvc but I’m not sure if it plastic or metal.
This is the other end that has an elbow coupling and it looks very similar to pvc but a different colour.
Attachments
Possibly ABS pipe.
Try to clean the pipe with water to see if it has any writing on it.
The transition is typically not pressure rated and ABS is usually a DWV application.
www.oatey.com
Try to clean the pipe with water to see if it has any writing on it.
The transition is typically not pressure rated and ABS is usually a DWV application.
Oatey® ABS To PVC Transition Green Cement | Oatey
Oatey® ABS to PVC Transition Medium Bodied Green Cement is recommended for DWV-sewer applications. The green color easily identifies application to pipe surface. Its medium body has excellent gap filling properties and is easy to apply with included in-lid dauber. This low VOC, fast set cement...
Last edited:
sktn77a
Gold Supporter
A magnet won't work on copper. Try tapping it with something metal if you're till unsure.
I don’t think that it is copper.
Copper would be copper color or green.
It does not look like copper and I don’t think that copper pipe would fit snugly enough in a PVC fitting to stay secure at all.
PVC glue would not adhere at all to copper.
The OP can try scraping the surface with a knife to get a better idea what it is.
If it’s hard plastic, then it is probably ABS.
If it is soft plastic, then it might be black poly pipe.
If you cut out a section of pipe, you can drop a strong magnet through the pipe and if the pipe is copper, the magnet will fall more slowly than normal due to lenz's law.
Oly
Gold Supporter
That is amazing, thanks James. I try to keep my grandkids astounded and this is perfect.
Last edited:
I found this, but it is expensive.
www.onlinemetals.com
4" OD x 0.625" Wall x 2.75" ID Copper Round Tube 101 | Online Metals
View our full selection of 4" OD x 0.625" Wall x 2.75" ID Copper Round Tube 101 stock today on our website. Buy online with fast shipping direct to your door.
www.onlinemetals.com
Many pools of that era were plumb with black PVC. You don't see it much anymore as there were all kinds of issues with the black fittings. A little PVC primer can tell you what it is.
Black PVC pipe seems unlikely, but not impossible.
Typically, black PVC is used for furniture or maybe solar.
I don’t think that it was used for pools much.
www.pvcfittingsonline.com
Black Polyethylene or ABS seems most likely.
Maybe try to find some writing or scrape the surface to see if the plastic is hard or soft.
Differentiating between PVC and ABS is difficult unless you are really familiar with the look and feel of each.
PVC and ABS are both dissolvable in PVC solvent, acetone or MEK.
Polyethylene (Black poly) does not dissolve in PVC solvent.
There should be writing on the pipe to identify what it is.
Typically, black PVC is used for furniture or maybe solar.
I don’t think that it was used for pools much.
Black PVC Pipe - Furniture Grade / Schedule 40 (1/2"-2")
PVCFittingsOnline stocks black unmarked pvc pipe with no markings. Also refered to as Furniture Grade, this schedule 40 unmarked pipe is popular for furniture and around the home use. In Stock Today.
www.pvcfittingsonline.com
Black PVC Pipe rigid Schedule 40 - 2
www.solarthermal.com
Black Polyethylene or ABS seems most likely.
Maybe try to find some writing or scrape the surface to see if the plastic is hard or soft.
Differentiating between PVC and ABS is difficult unless you are really familiar with the look and feel of each.
PVC and ABS are both dissolvable in PVC solvent, acetone or MEK.
Polyethylene (Black poly) does not dissolve in PVC solvent.
There should be writing on the pipe to identify what it is.

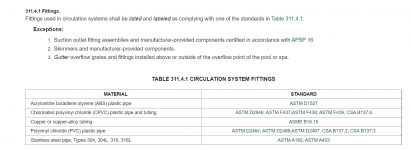

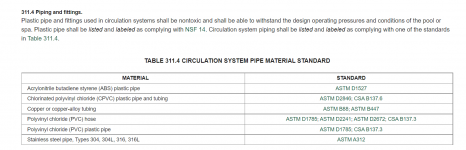

ABS is used in some pool products like skimmers, multiport valves etc.
codes.iccsafe.org
Digital Codes
ICC Digital Codes is the largest provider of model codes, custom codes and standards used worldwide to construct safe, sustainable, affordable and resilient structures.
codes.iccsafe.org
Last edited:
I would think that the solar plumbing would be more expensive than regular PVC, so I would not expect to see it used for regular plumbing, especially underground.
Maybe it was all they had at the time and they just wanted to get the job done.
The fact that it's mixed with regular PVC would support the idea that it was not the intended pipe for the job.
In any case, I'm glad that you got it figured out.
Maybe it was all they had at the time and they just wanted to get the job done.
The fact that it's mixed with regular PVC would support the idea that it was not the intended pipe for the job.
In any case, I'm glad that you got it figured out.
