So you think it’s a cable issue? Could this be causing all the other issues too? For the expansion panel? What kind of cable is it? If I end up needing to replace it.
Intellitouch i9+3 and Expansion Center i10x not working properly 520949 receiver
- Thread starter koltontaylor
- Start date
Does anyone thing the I-Link adapter could be interfering with anything? It connects and integrates with our homes crestron system.
K,
People that troubleshoot for a living do not guess and blindly replace parts...
They test and fix what they find wrong.. then move on to the next test, etc...
At this point you have no voltage going to your Transceiver antenna.. You need to fix that problem, and then see where you are.
As a side note.. I used to work for AMX, which was the main competitor for Crestron.. This was a long time ago, when touch screens were only for the really rich..
.Thanks,
Jim R.
Ok I tested it after resetting. Same results. I’m going to assume the cable is dead. What cable do I need to use to replace it?
K,
It is just door bell wire or something similar..
Needs to have at least 4 wires..
I would not use Ethernet cable.
Home Depot or Lowes..
Of course you would just buy 3 or 4 feet or whatever length you need..
Thanks,
Jim R.
It is just door bell wire or something similar..
Needs to have at least 4 wires..
I would not use Ethernet cable.
Home Depot or Lowes..

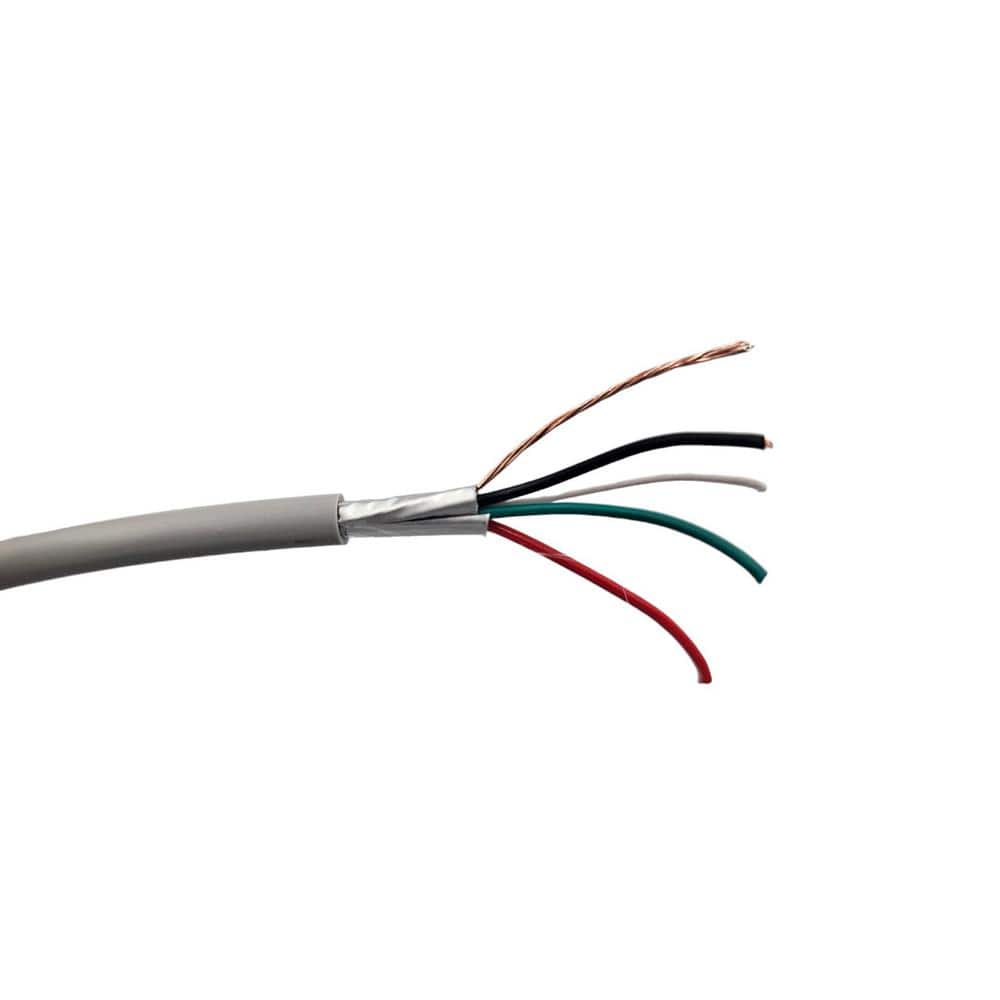

Micro Connectors, Inc 100 ft. 22AWG/4 Conductors Gray Stranded-Shielded CL2 Power/Alarm/Audio Wire TR4-4C22G-100 - The Home Depot
Get excellent connection and durability in your home by using this excellent Micro Connectors Inc Gray StrandedShielded CL Alarm Audio Wire.
www.homedepot.com
Of course you would just buy 3 or 4 feet or whatever length you need..
Thanks,
Jim R.
+1 to Jim's wire recommendation, but I'll add that if it's exposed to sun make sure it's UV protected or it'll just rot and crumble.
Thank you I’ll try to pick some up today. Is there a reason why you would use 4 cable wires over what we currently have installed there which is the cat5? Does paint count as UV protection lol.
Also, do you want me to replace all of the wires or just the two outside wires?
K,
Would not use Cat 5 cable...
I would replace all 4 wires, as that is what is in the new cable.. Make sure all power is off first before doing anything.
Thanks,
Jim R.
Would not use Cat 5 cable...
I would replace all 4 wires, as that is what is in the new cable.. Make sure all power is off first before doing anything.
Thanks,
Jim R.
Replaced wires. Getting a reading at the antenna now. Still no power lights on. How can I sync the antenna to my remote? I cleared the remote at one point maybe it just needs to be synced again.
Can I get clarification on what this random wires are? One set goes to the expansion panel. The other set I can’t figure out where it goes yet.
Attachments
The yellow and green "data line only" wires go to your pump.
The wires going to the expansion panel also look like Ethernet cable, which isn't great... they could be heavy duty/uv protected but I can't tell from looking at them. Might be worth changing that too.
But none of the above is going to fix your antenna card problem... If it's getting power at the terminal block on the card and the power led isn't turning on then something is wrong with it. What's the version number on the back of the antenna card? (2020, 2030, 2040 etc)
The wires going to the expansion panel also look like Ethernet cable, which isn't great... they could be heavy duty/uv protected but I can't tell from looking at them. Might be worth changing that too.
But none of the above is going to fix your antenna card problem... If it's getting power at the terminal block on the card and the power led isn't turning on then something is wrong with it. What's the version number on the back of the antenna card? (2020, 2030, 2040 etc)
I'll send you a pm, I might have a replacement
Make sure the polarity is correct... And can you tell what is hot? (All the parts have a screen printed label)
Everything in this general area. I ran the wires exactly as they were run before I didn’t switch them up on accident.
Attachments
ok those are the voltage regulator chips... double check the voltage with your multimeter (using the screen printed labels on the board, set your red test lead on the "red" terminal, and your black test lead on the "blk"... you should see a positive number)
then flip it over and tell me the version on the back...
then flip it over and tell me the version on the back...
Did the whole system just get hit with a power surge and get ruined? It still somewhat functions.
