Aqualogic/Goldline Relay and Breaker Replacement

cfvilleg

Member
May 26, 2017
6
Apex/NC
Can someone help me figure out what relay I need to order to replace the pump filter one that burned out (see pic)? Also I would like to replace the breaker attached to it. The ones I found do not have the metal bar. Is that needed? Or can I order a standard Siemens double pole 20amp breaker? If anyone knows the part numbers or where I can order them that would be fantastic. Any tips on how to replace the relay and breaker is also very much appreciated.


Attachments

  • 20220531_143036.jpg
    568.4 KB · Views: 13
  • 20220531_152711.jpg
    732.2 KB · Views: 13
  • 20220531_152611.jpg
    770.7 KB · Views: 10

JamesW

TFP Expert
Mar 2, 2011
30,630

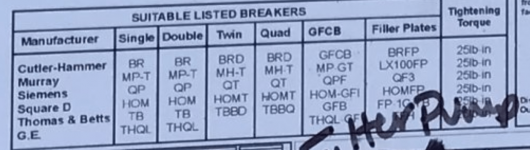

Look on the inside of the door for compatible circuit breakers.

You want GFCI.


JamesW

TFP Expert
Mar 2, 2011
30,630
Last edited:

cfvilleg

Member
May 26, 2017
6
Apex/NC
Thanks for the quick reply.
Will order the relay right away.
Please excuse the dumb question but for the breaker, I found this --> https://www.amazon.com/Siemens-Q22020CT2-20-Amp-Circuit-Breaker/dp/B000VYOT9S not GFI but a closer match? I can't tell but aren't 2 of the breakers tied together to make it a quad or can they be separated? if they are separate I will order the one you suggested for sure.
Thank you again for your help.


JamesW

TFP Expert
Mar 2, 2011
30,630
It looks like the Aux 1 and the Aux 6 relays are not being used.

You could use one of those extra relays if you need it to work right away.

Breakers should be GFCI.

I would get 2 new GFCI breakers and remove the quad breaker.

Last edited:
