I know this is an old thread and probably most in this forum has some form of Pentair Automation. Moved into the house in July 2020 and the system was a Intermatic 240v timer for the whisper flow pump and the lights and blower were all controlled with the X-10 automation devices. So since July...

Moved from here. I saw this post as I was looking through the forum. I currently have a whisper flow (what came with the system) but was wondering if you had any Comments on a pentair VS (011028) vs VSF (011056)? The the VSF is less expensive

Wired it up today. All worked well. I did replace on of the 20A breakers with a 15 Amp GFI and wired the pool and spa light to individual circuits on the multwave And bypassed the GFI outlet. Not bad for $199 from eBay. Still need to wire in the landscape lights. Probably make them go...

The pump is 10 and not sure on the Gas heater. I’ll wire it later today and see what happens If load to much I could just wire heater separately

Thanks

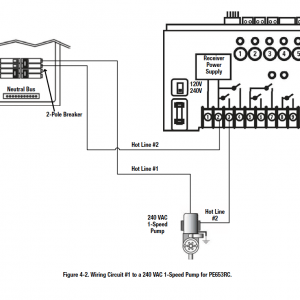

what about a relay. All Line and load wired to a relay and the on/off for the relay wired to the switch. I saw this in the manual and wondered what this meant. * To break both lines, use relay kit PE21RLY.

Also the way they wire a variable speed pump is direct to the CB and controlled by the data cable. SO is this a BAD thing?

or a bad relay

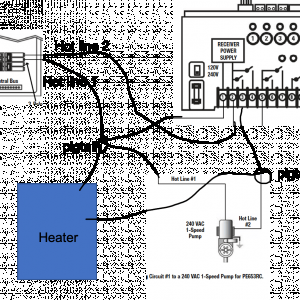

never thought of that, but given that is how MW works, is my wiring diagram ok

I just installed a new Multiwave (MW) to my old 60A power panel that had a 220V mechanical timer. On the timer connections for both load 1 and 2, they wired the hots from both the pump and heater under one screw. see attached pic. The black wires on load 1 for pump and heater, and the red wires...
