Just wanted to give a quick update: I had the pump start-up today and everything went great. I wired it all up myself and had an electrician check it out to ensure I did the work correctly (which I did). Thanks to everyone and especially AJW22 for showing me how to do it. I'll post a few...

Reassessing... Taking back the T101, getting the T104 in an outside enclosure. Wiring it 220v to a 20A breaker. Putting all the electrical components in PVC conduit outside near the pool equipment. Going to mount it to a 1 1/4" X 12" piece of laminated beam I have painted to match the color...

Well, the timer that I bought is only for indoor installation. Not an outside install box. And the pump itself has a digital control panel, would that suffice for a shut off or not?

The ground wire all the way from the Circuit breaker or just once outside to be green insulated? And no, the timer is inside and the SWG generator is outside.

Yes, once I get outside I will transition to individual 12 AWG wire in PVC conduit.

Left side is power from breaker. Right side to pump and SWG. Neutral pigtail on 'A' - wire nut to Incoming neutral (white) and outgoing neutral (white) X 2 - pump and SWG. Ground pigtail on 'G' - wire nut to Incoming ground (bare) and outgoing ground (bare) X 2 - pump and SWG. Hot incoming...

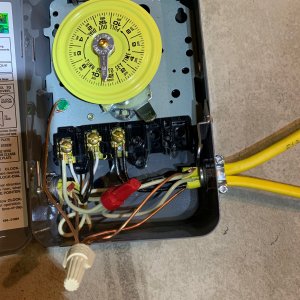

Ok - Here it is wired up. Ignore the red wires, I am using some leftover 12/3 cable and am clipping the red wire.

I actually just have a regular 20A breaker. Was going to put in a GFCI receptacle before the timer to protect. Should I try and get a different 20A breaker instead? I didn't see any at Home Depot but I didn't look real hard either. Siemans panel.

AJW - Ok thanks, I'll get to it and send another picture!

I know the sketch is rough, but the neutral's are all wired together and not to a terminal in the timer.

Ok, before I begin: This is a sketch of what how I plan to wire it. Tell me if this is right or wrong. Again, I will not hook up anything to power until the wiring is correct! Thanks...
