Is this something most homeowners can install or will I need to hire a professional?

I’ll call them tomorrow for a price. In the meantime, I’ll go back to have the spillway constantly running by adjusting the valves. Thanks again for all the help.

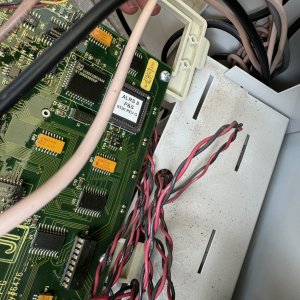

6520 Rev GGG

I think the pool was built around 2000. Maybe Rev I or Rev G (?)

Thanks for sending the link. Will it still be compatible with my console in the house. Pictured below.

darn. Thanks for chiming in. At the very least this was a good exercise with the multimeter. Is this what I’m looking for...

To clarify, When I switch between Pool mode and Spa Mode only the INTAKE actuator functions. The RETURN actuator has no response. when I plug the RETURN actuator into the INTAKE connector, the RETURN actuator acts as expected and cycles properly from Pool mode and Spa mode. When I plug the...

AUTO INTAKE Pool mode Black and red: 26.9 Red and white: 2.36 Spa Mode BLACK AND RED: 1.3 RED AND WHITE: 2.4

It may be operator error. I've re-checked three times in the following way: turn off breaker, remove INTAKE plastic connector turn on breaker Service mode-->Pool Mode black lead to black (from above diagram) red lead to red (from above diagram): 26.9 red lead to red (From your diagram) black...

I see what you mean. On RETURN the voltages are identical between spa mode and pool mode. On INTAKE, they’re clearly different.

INTAKE SPA MODE: Black and red: 1.5 Red and white: 2.7 POOL MODE Black and red: 26.9 Red and white: 2.4 RETURN SPA MODE black and red: 26.9 Red and white: 2.1 POOL MODE black and red: 26.9 Red and white: 2.2

Fuse replaced. INTAKE SPA MODE: Black and red: 1.3 Red and white: 1.95 POOL MODE Black and red: 27 Red and white: 2.0

Hoping it's just this fuse.
