@swamprat69 - That's probably not it then since the blower will not come on although it did come on when I gave it 24v in the earlier reply. Trying to avoid spending $400 plus on a new board or a bad one on eBay. Will go through all of my measurements again on the trouble shooting guide.

@swamprat69 Thanks for your help thus far. I replaced all of the relays on the PIB board and that wasn't it. Not to say that somethiing else on the PIB isn't bad. How do you test the Air Pressure switch? Can I bypass it somehow?

Jumping Red#3 to the W on the IC worked! I held it here and the heater went through the motions and fired. I looked at the back of the PIB and the UI and did not see any blackening or browning or any cold solders. Tapping the relays didn't do anything. When I start it, I do hear a clicking...

I get 24V on wire 4 and wire 5 on the J15 socket. The Water thermister measures around 8,300 ohms and the water temp is 84 degress so that looks correct. Is it possible that the blower/motor is not working even though the motor windings are measuring resistance? There is an LED on the ignition...

I am getting 25.3V between GND on IC and 24v on IC. I am getting 0 volts between GND on IC and wire 10 on the J3 socket. I am also getting 0 volts between wire 5 and wire 4 on the J15 socket.

I am getting 29 ohms between the white plug wire and the blue wire from the motor plug.

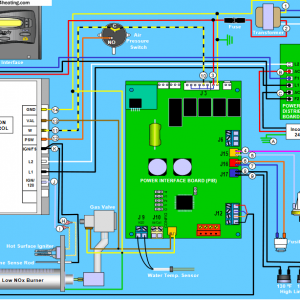

@swamprat69 Here is a link to the troubleshooting guide I was using. Per your instructions, I am not getting 120Vac between the white and blue or back wires on the PDB. They measure around 15V and go up slightly when I turn the heater on. I am also not getting 24v between the W and GND on the...

@swamprat69 Thanks for the quick response! It is wired for 120Vac. I followed the troubleshooting guide and measured the voltage between F2 terminal of Ignition Control and ground (A) which checked out. Also voltage between F1 terminal of Ignition Control and ground (A) which was good and...

Hello all- I am having the same issue with my heater. I am getting the same error on the panel. The fan/blower is not starting when I turn on the heater. I replaced the capacitor and that did not work, the voltages check out according the troubleshooting guide. My main question is, does the...
