I did this test earlier in the first set of pics I posted. If you zoom in you can see the RED wire on the AUX1 Load Out Pin is disconnected and floating. No change in results.

I guess was actually measuring L1 and L2 from the other cabinet. I attached photos of the motor. I isolated all the wires as shown in the second picture. It is looking like rain was coming so I stopped for the moment but I think I need to take the L1 to Red measurements maybe. I think I may...

L1(HI) TO L2(COM)=1.8 ohm A(LO) TO L2(COM)=6.0 ohm L1(HI) TO A(LO)=6.6 ohm I wonder if the manufacture posts any nominal DC winding resistance data to compare.

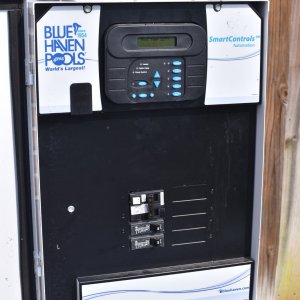

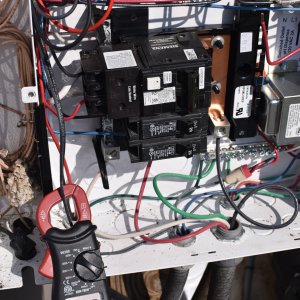

I attached some pictures of the motor controller. I had wondered the same thing about it possibly energizing both coils at once, but as you can see in one of the pictures, I disconnected the low speed winding, attached to AUX1, and still measured the high speed winding at about 19 amps. I am...
