Originally posted in: Post in thread 'Hotspot FPH pool heater install'

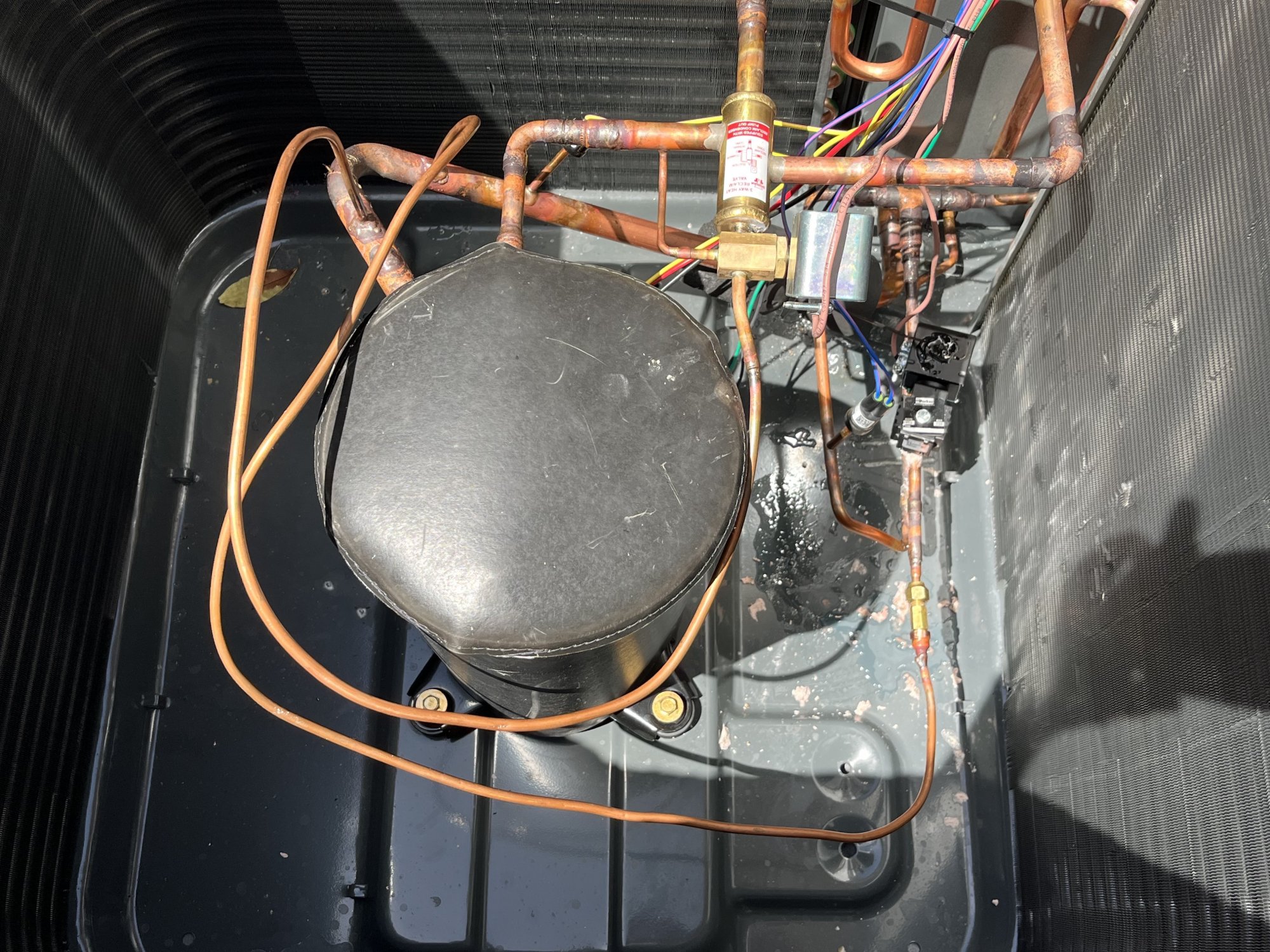

The 3 way valve sits in between the compressor and condenser. On the upper right of the picture, a line comes from the condenser's discharge through a solenoid and restrictor, then back around to the suction line.
Click to expand...
