Corroded power connector on Pentair IC40

Jump to latest Follow Reply
N

ntrueman

Member
Oct 31, 2023
9
Florida
I replaced my Pentair IC40 in April this year and it has just failed with communication error due to water getting into the the connector and corroding the pins. I live in Florida where water and heat is always a problem. I thought the solution was going to be easy. Cut off the old connector and replace with a new one BUT Pentair don't make the connectors available. They told me to spend another $1100 and buy another new one.

Does anyone know where to buy these connectors, I doubt they make them themselves. I'd be happy to buy 100 and make them available to others via ebay if necessary.


Attachments

  • connector.JPG
    17 KB · Views: 27
Welcome to TFP.

Is the female jack on the bottom of the Power Center also corroded?

I would be surprised if the male plug on the cord corroded without damaging the female jack.

If both sides are damaged then you can bypass the Pentair connector and either solder the wires together or use a different connector.

Members did something like that with the IntelliPh that has a connector that burns out...

Pentair IntelliPh Circuit?wiring supply issues

This will be the 3rd time over approx 4 years that the connector from the power supply to the IntelliPh circuit board overheats and melts. I have had this occur not only on original unit but replacement (complete new unit). I have also replaced 1 control unit separately. The overheated pin in...
www.troublefreepool.com www.troublefreepool.com

@Dirk has made a few mods to his system that may be helpful to you.

Last edited:
It's just a standard 4 pin circular DIN connector.

Any supply place should be able to help you identify the correct plug.






www.te.com

1-967325-1 : Automotive Housings

Get 1-967325-1 Automotive Housings specs, pricing, inventory availability, and more from TE Connectivity. Get a sample or request a quote.
www.te.com www.te.com




206430-1 TE Connectivity AMP Connectors | Connectors, Interconnects | DigiKey

Order today, ships today. 206430-1 – 4 Position Circular Connector Receptacle Housing Panel Mount from TE Connectivity AMP Connectors. Pricing and Availability on millions of electronic components from Digi-Key Electronics.
www.digikey.com www.digikey.com




  • Like
Reactions: Newdude

crushinag.com

AMP CPC CONNECTOR KIT, (4) 18-14 AWG SOCKETS, SERIES 1, FLANGED 4 WAY CONNECTOR WITH THREADS, 206430-1, SIZE 11 BACKSHELL, SMALL | 3CP-K411S-THF | CrushinAG

Shop high quality AMP CPC CONNECTOR KIT, (4) 18-14 AWG SOCKETS, SERIES 1, FLANGED 4 WAY CONNECTOR WITH THREADS, 206430-1, SIZE 11 BACKSHELL, SMALL | 3CP-K411S-THF online form CrushinAG at best price. Order now!
crushinag.com crushinag.com









206429-1 TE Connectivity AMP Connectors | Connectors, Interconnects | DigiKey

Order today, ships today. 206429-1 – 4 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut from TE Connectivity AMP Connectors. Pricing and Availability on millions of electronic components from Digi-Key Electronics.
www.digikey.com www.digikey.com


www.te.com

206429-1 : AMP Circular Connector, Environmentally Sealed, CPC Series 6

Get 206429-1 AMP Circular Connector, Environmentally Sealed, CPC Series 6 specs, pricing, inventory availability, and more from TE Connectivity. Get a sample or request a quote.
www.te.com www.te.com








crushinag.com

AMP CPC, 4 Pin, Lock Ring, Rev Sex Plug Connector Kit, Signal, 4 Signal Contacts, Size 11, 206429-1 | CrushinAG

Shop high quality AMP CPC, 4 Pin, Lock Ring, Rev Sex Plug Connector Kit, Signal, 4 Signal Contacts, Size 11, 206429-1 online form CrushinAG at best price. Order now!
crushinag.com crushinag.com

Sounds like James has you on the right track, to find the correct replacement parts. But I would try Marty's suggestion first: get the thing fixed under warranty. If you don't live in the boon docks, Pentair will send an authorized repairman to your home and fix or replace whatever needs fixing or replacing.

As Allen implies, you could replace both the male and female parts with just about anything with four conductors, or just solder the wires, but unless you use the correct parts then that'll orphan the next cell you buy. The cells wear out, and then you buy a new one to replace it. You want the new cell to plug in to a factory receptacle for EZPZ replacement.

  • Like
Reactions: JamesW

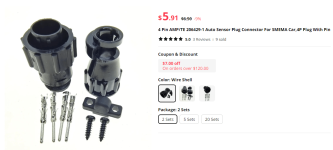

I think that you need part number 206429-1 and the backshell and 4 pins.

https://www.digikey.com/en/products/detail/te-connectivity-amp-connectors/206429-1/19358

www.te.com

206429-1 : AMP Circular Connector, Environmentally Sealed, CPC Series 6

Get 206429-1 AMP Circular Connector, Environmentally Sealed, CPC Series 6 specs, pricing, inventory availability, and more from TE Connectivity. Get a sample or request a quote.
www.te.com www.te.com

Size 11 Backshell Included in AMP CPC Connector Kit




IntelliChlor cells are failing here often and you can probably get a failed cell to use as a parts donor for the connector.

  • Like
Reactions: Newdude

Enjoying this content?

Support TFP with a donation.

Give Support
  • Like
Reactions: ntrueman
ajw22 said:
Welcome to TFP.

Is the female jack on the bottom of the Power Center also corroded?

I would be surprised if the male plug on the cord corroded without damaging the female jack.

If both sides are damaged then you can bypass the Pentair connector and either solder the wires together or use a different connector.

Members did something like that with the IntelliPh that has a connector that burns out...

Pentair IntelliPh Circuit?wiring supply issues

This will be the 3rd time over approx 4 years that the connector from the power supply to the IntelliPh circuit board overheats and melts. I have had this occur not only on original unit but replacement (complete new unit). I have also replaced 1 control unit separately. The overheated pin in...
www.troublefreepool.com www.troublefreepool.com

@Dirk has made a few mods to his system that may be helpful to you.
Click to expand...
Yes but you can buy a replacement cable & socket for the power center (which I did), so its the plug on the cell I'm looking for now.

JamesW said:
You can cut off the connector and use a cable gland to make a secure connection into the box and then just connect the wires directly.

Just make sure you get the correct size gland and get the wiring correct.



View attachment 538463



Click to expand...
Thanks that looks like it, great I'll order a few.

JamesW said:
You can cut off the connector and use a cable gland to make a secure connection into the box and then just connect the wires directly.

Just make sure you get the correct size gland and get the wiring correct.



View attachment 538463



Click to expand...
Oh sorry I misunderstood. No I need to be able to disconnect it in case a future replacement is needed. I did look at other replacement waterproof connectors BUT then I would always have to fit a connector to any new cell I purchased. I wanted to source the standard one pentair use.

  • Like
Reactions: Dirk
JamesW said:
View attachment 538461

www.te.com

66098-8 : AMP Strip Pin and Socket Contacts, Type III

Get 66098-8 AMP Strip Pin and Socket Contacts, Type III specs, pricing, inventory availability, and more from TE Connectivity. Get a sample or request a quote.
www.te.com www.te.com

www.te.com

206429-1 : AMP Circular Connector, Environmentally Sealed, CPC Series 6

Get 206429-1 AMP Circular Connector, Environmentally Sealed, CPC Series 6 specs, pricing, inventory availability, and more from TE Connectivity. Get a sample or request a quote.
www.te.com www.te.com
Click to expand...
Thanks very much I have ordered some to try. Will post my results.

You can get some 1/4” spade connectors and cut the 4 wires inside and use the spade connectors.

Leave the female connector in place and use spade connectors later to reconnect the female to the wires.

You will need 8 female and 8 male 1/4” connectors plus a cable gland.

Or just get a 206429-1, backshell and 4 pins.



ntrueman said:
No I need to be able to disconnect it in case a future replacement is needed. I did look at other replacement waterproof connectors BUT then I would always have to fit a connector to any new cell I purchased. I wanted to source the standard one pentair use.
Click to expand...
That's correct. That's what I was saying. You want the original parts, otherwise when you replace the cell and cut the brand new cable to work with your retrofit, you'll void your warranty.

ntrueman said:
I tried to but they would not accept it. What do you do when they just say no?
Click to expand...
Call back and try again. And again if necessary. Their tech support people have discretion. Call back to get a different one that has a different notion about acceptable reasons for repair.

Or just call back and give them less info. Just say it's new and doesn't work. "Please send someone out to fix it." They might give you some troubleshooting steps, perform those, or pretend to, or tell them you already did. You get the gist.

The guy that will come to your house won't be a Pentair employee, just some pool guy who has earned Pentair authorized repairman status. He won't care about giving you a new cell and connector, it's not his money.

IMO, that wouldn't be anything unethical. Pentair uses inferior connectors. Many of us have been stung by them. They corrode and cause all sorts of problems, that Pentair foists onto the consumer. It's not unfair that they have to eat if once in a while for their penny-pinching, cost-cutting decisions.

Those connectors are part of a pool equipment system, intended to work outside in the elements. When they fail at their intended use, during the warranty period, that's on Pentair, not you.

Dirk said:
Sounds like James has you on the right track, to find the correct replacement parts. But I would try Marty's suggestion first: get the thing fixed under warranty. If you don't live in the boon docks, Pentair will send an authorized repairman to your home and fix or replace whatever needs fixing or replacing.

As Allen implies, you could replace both the male and female parts with just about anything with four conductors, or just solder the wires, but unless you use the correct parts then that'll orphan the next cell you buy. The cells wear out, and then you buy a new one to replace it. You want the new cell to plug in to a factory receptacle for EZPZ replacement.
Click to expand...
Yes I had considered using an alternative 4 pin plug but hessitated for the reason you stated (future compatibility). James has certainly provided multiple sources for the right connector and I have order samples to check this out. I have not been very lucky with Pentair at all, thier response on multiple issues has been nothing short of useless. If I can resolve without involving them further I will do that.

Thanks to everyone for being so helpful!!!!
