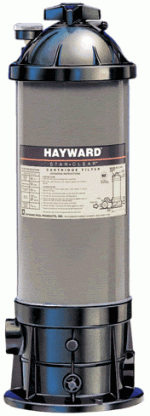

I am having trouble figuring out how to connect my Hayward pump Sp1592 to my new cartridge Hayward Filter W3C500. The Filter intake is at the bottom of the unit. Is there a kit or something to use? I am struggling to find anything online and pool store people have been less than helpful. Even a Hayward rep struggled to figure out how to do it. They can't even tell me if I need to find another pump to go with this filter. Any help would be appreicated!


Very similar to when mine was set up several years ago.

full

SunMo said:
Are all the fittings that screw onto/into the filter and pump just stuff I can get at a hardware store or do I need to buy something special?
Click to expand...
Many of them are, but nowadays supplies at the hardware store seem to be hit & miss. :brickwall: Hopefully you can find a good source locally. If not, you may end-up ordering online if needed.

  • Like
Reactions: SunMo
I used these fittings man they are more expensive now double in price. They give a little margin for error. Also the Matrix pump to filter connection will rotate to connect directly to the side of filter housing if you want to eliminate a 90 degree ELL.


Attachments

  • Hayward SP1480BLK 1.5-Inch MIP Black Self-Aligning Double Male End Union Replacement for selec...jpg
    Hayward SP1480BLK 1.5-Inch MIP Black Self-Aligning Double Male End Union Replacement for selec...jpg
    11.3 KB · Views: 1
  • Like
Reactions: SunMo
