Update.... I figured it out. System Setup -> Color Lights -> Jand Colors and then changed AUX2 (which is the Sheer Descent) to not have JL, JC, SL, or CL with it.

I have an Aqualink Touch., PDA-PS6. There is a sheer descent pump that does not have any lights associated with it. Recently, when I enable the Sheer Descent pump, it ask for a light color and then do the normal jandy power light power cycle. So essentially hard starts / stops several...

In theory, you should be able to run the Pool and Home Heater off of 22KW Gen. I have a 24KW Natural Gas Generac Gen at my house. My house is Natural gas-heated. So the question is, "Is your house electric or gas heated?". If Gas, make sure you have a large enough gas line to supply both the...

Hah... luckily I survived this year in TX. I had a scare when the pool temp dropped to 31 and ice started forming on the surface. I decided to try my JXI 400N heater to warm it to 42 and it was throwing all kinds of codes. After cleaning the sensors and clearing the codes ("All 3 buttons...

I am in the same position. Two of my 3 lights have failed. This website advertises them. https://tspoolsupply.com/products/blue-square-spectrum-360-led-light-white-200040-wt But $499 per light is a lot. I have not reached out to my pool builder to see if they would sell directly to me...

Glad you got it fixed. Honestly, those seals are $25 to $8 items, which to me is an expendable part to replace. It only takes an additional 5 - 10 minutes to do it.

I am looking for O-Ring sizes for the R044600. Jandy only lists the Part Number for the plug and O-Ring. I just want to order the O-rings. I am slowly building up a stockpile of spare O-Rings and parts for all my pool equipment.

@JamesW Do you have a reference to install a flow switch into a non-salt water Aqualink? Basically, trying to figure out the wiring into the control panel so that it shuts off the heater when no flow is detected.

I had to dump the filter to replace the drain plug O-ring. I didn't backwash or clean the grid, it emptied the filter of water and loose DE. I put 5 measured lbs of DE back in via a slurry. I have had to replace a lot of O-rings after having the pool for 3 years. Just been working my way...

Interesting. That is a much simpler design with fewer parts.

Yea, I measured out the weight on a small scale. It was just that the table makes no sense and I was wondering if I was missing something. Basically, 1 orange DE cup is between 18 to 14 oz depending if packed or not.

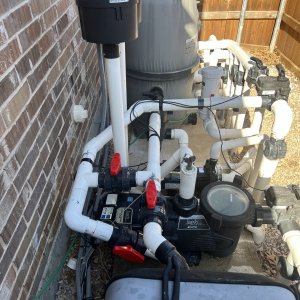

Added a heater bypass last night. Used these 2" ball valves. https://www.amazon.com/dp/B09ZTVF5MV?psc=1&ref=ppx_yo2ov_dt_b_product_details After the initial movement of the ball, it is very smooth. My only complaint is that the Orings can call out when placing the valve body. But with...

I have a Jandy DEV60. Looking at the manual, page 9 Table 2 it states: Model No. DE Quantity (lbs.) DE Quantity (kg.) No of 1 lb. Coffee Cans DEV48 5.0 2.0 10 DEV60 6 2.7 12 Am a bit confused about understanding the table. It appears I should use 12 1lb Coffee Cans to coat the grid...
