This is the guide I’ve used. I get To nunber 13 and that’s the issue.

I’m honestly at a loss. Completely. I know everything works except the 24 volts being sent to the gas valve. This weekend I’m going to check those wires again. I should also get 24 volts coming right off the ignition control panel telling the gas valve to open as well correct? It I do a...

If I have to pay a guy to come here to look at this fron the neighbouring city as Ours doesn’t have a pool specialist, and then i have never changed a fuse at all. I looked at it yesterday and it looked fine.

I don’t know. I’m not even convinced this is the issue. I have put in a new fenwall. New circuit board. New hot surface igniter. New flame sensor. And it does the same thing now with all the new parts that it did before I even changed a single part. HSI glows hot. Then get a clicking sound...

Man this is so frustrating. Swamp rat I hear what you’re saying. Why would a faulty gas valve damage the Fenwal. I have diagnosed the LRZ on the lrze troubleshooting guide someone posted. Everything checks out right up until step 13. There is no 24 volts to the gas valve. And there is...

I spent some time yesterday on this, and there is not 24 volts coming to the gas valve. As I mentioned earlier, the hot surface igniter broke so I have a new one on order, but nonetheless I did turn on the furnce, let it go through its ignition sequence. The 2 wires that go to the hot surface...

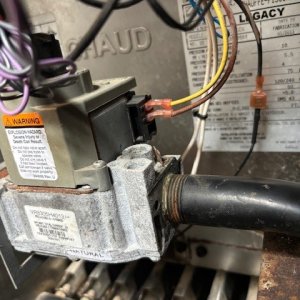

I was measuring this by taking the two wires off the gas valve, letting the heater go through its ignition sequence and testing the two wires that normally would go on the gas valve. If I leave my multimeter on the two wires, let the furnace go through the ignition sequence, the HSI would heat...

I also found on this site a step by step trouble shooting guide. https://www.fwwebb.com/docs/gas/JandyPoolHeaterTroubleshootingGuides.pdf Everything checks out To step 12 and then it was getting dark and cold so i came in. I couldn’t verify the voltage to the HSI. But I assume since it would...

So I’ve done the ohms resistance testing. Nothing. I get no reading whatsoever when I measure resistance on the two gas valvle contacts together. Then also tried to touch one contact at a time while putting the other end of the multimeter on the fenwall ground. And again nothing. I’ve tried...

Thanks swamprat69. I had the flat igniter style. But it blew so I order a spiral one. Should be here next week. Seeing as I am just testing resistance I assume I don’t need the igniter installed for that. I will get this tested and report back what the resistance is.
