Okay thanks. I'll re-wire it per your suggestion

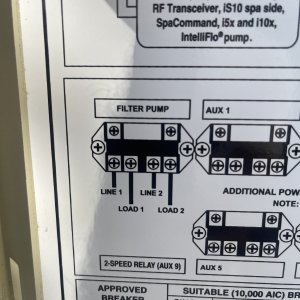

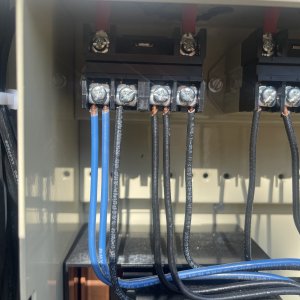

Wire clarification: One black wire from lower pole of dbl breaker goes to Load 1. One black wire from upper pole of dbl breaker goes to Load 2. Two blue wires from Line 1 goes to = 1 to pump and one to heater. Two black wires from Line 2 goes to = 1 to pump and 1 to heater.

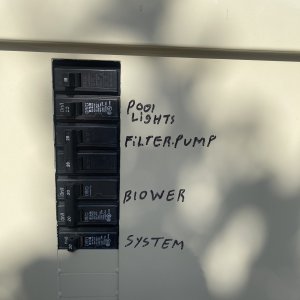

Yes. Double pole breaker has 2 black wires going to Load 1 and Load 2 I do not have an intelichloranator.

I will have a friend help me correctly post photos later. Thanks everyone for your comments.

Line 1 (two blue wires) = one blue wire goes to the pump and one blue wire goes to the heater.

I created a screen shot with the photos but its also to large. Sorry

Hope this works. Compressed photos

Sorry. Even one single photo is lo large.

I can't attach photos of pdf. I get a message saying photos are to large

So today I changed the wiring. You were correct about it being wired on the Load side. I just switched the wires to the Line side. Power (wires) from the breakers now runs to the Load side and wires from the Line side run to the pump. However after the schedule ended at 3:00pm, I got the...
