Thanks all, I’ve made an update based on the comments which I think is the correct solution: moved white wire from booster slot 1 to filter slot 1, white wire from from booster slot 3 to filter slot 3. Both clocks are always powered, booster only has power when filter is active. Ignore out of...

You must have just edited it before I read it. Got the message that it is now wired correctly

Thank you!

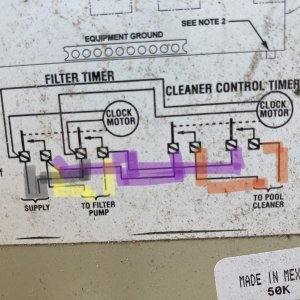

I corrected the wiring that was installed prior to purchasing my home, moving the purple wires per the diagram so now my booster pump will not turn on without my main pump running👍 However I am unsure what the white wires are doing or whether they are redundant with the purple providing power to...
