It’s working but not quite. Thanks to all all for their help. The transformer is working and the lights are coming on. Two issues tho. 1.they are not syncing or changing color through the pentair app. 2. sometimes when turning off the lights, the breaker will trip. I’m using a 15a breaker...

Thanks for your help, I’ll try that tomorrow. So the fact that they are both connected to the neutral bar doesn’t ‘bring the neutral back to it’ ?

Sorry it’s not the best pic. to pick up on something - I currently have the neutral from the xfmr connected to the neutral bar. Are you saying that’s wrong and it instead should be connected to neutral of the breaker itself? While breaker white pig tail should be connected to the neutral bar?

Yes it’s a PX300 and it’s the only thing on the circuit. - - - Updated - - - Thanks. Yes the blacks are separate and not connected as of yet. white from GFCI is to the neutral bar. The line from GFCI to relay and then load from relay to the black on xfmr. White on xfmr into neutral bar...

This pic shows how i was wiring it. Breaker to relay, relay line to load of transformer etc....

the black load

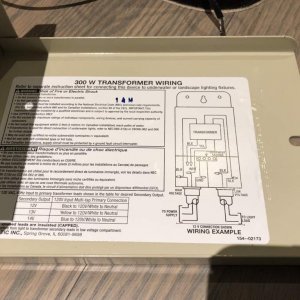

Intermatic transformer and pentair easy touch panel. I’ve added a breaker, ran the hot wire to the line of the relay and the transformer to the load. Ran the white neutral to the neutral bar in the panel and ground to ground bar. As soon as I turn on the relay it trips the breaker, regardless...
