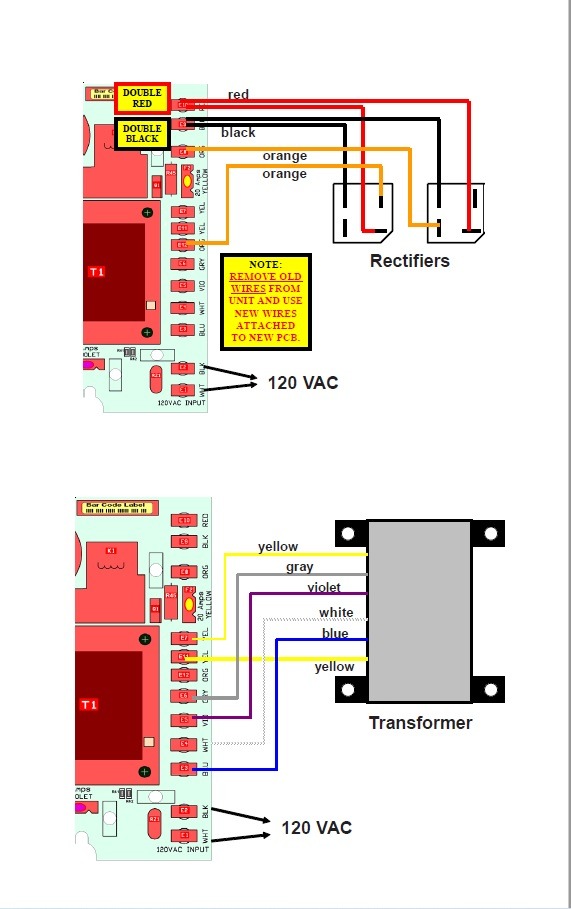

Rectifier and Transformer Wiring Instructions.jpg
Rectifier and Transformer Wiring Instructions.jpg
ProLogic Main PCB Layout.jpg
R

Rectifier and Transformer Wiring Instructions.jpg
