162h24 is the code

I removed it from the system so I could have any info I needed for a warranty claim tomorrow. So I'll plug it back in when I get a new one and test the windings on it to get the answer if possible

You think they will just send me a transformer and not a new pib board?

Ok, just wanted to get clarification. I assumed that's what you meant. That would of course void the warranty. Thanks for all the help. I had a feeling the transformer or something was fried before I posted on here, but I wanted to know how to determine that for sure.

You mentioned earlier that this is something not covered under warranty? Were you saying this item specifically doesn't have a warranty period, or were you meaning something else? I have good standing with our rep and my relationship with scp is pretty strong. I believe they are going to take...

Here is the back

I did get it from scp. They had to order it. I thought they got it direct from jandy but looks like they ordered it from a nother branch in NC, according to the shipping label... I can't imagine it would be used but I thought the same thing. But the sensors and everything was all still packaged...

No I trust this electrician. He's installed plenty of other pool related stuff for me. Not saying he couldn't make a mistake, but he would have came clean and told me the truth if he fried it tll. There was some other issues with this item out the box when I got it. Faceplates broken. Air temp...

Transformer has 0 output and 119 input VAC

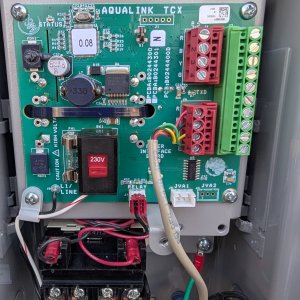

Waiting on electrician to arrive to wire the pump back up to it for me. But this is what mine looks like. The rs485 inside the pub of mine is connected at the bottom instead of of the top like yours. Does that make a difference, and notice top right. My mov1 black piece looks melted but idk if...
