When communicating with the Omni family of controls, the HUA (Hayward Unique Address) is used for communication.
For all other Hayward controls, the pump address must be set using the DIP switches on the drive PCB.
QUICK REFERENCE GUIDE
Hayward Variable Speed Pump
Default Speeds - NOTE: Factory default speeds are adjustable through configuration
Configuration Menu
Timers Menu - Stand Alone
*Max allowed speed for 60 mins, press again up to 6 hrs
*
1150 rpm
1725 rpm
2300 rpm
2875 rpm 3450 rpm
+
< <
< » Push
»
»
»
»
»
»
»
»
»
until until you see: Press to advance,
MENU appears, then hold down & Press to edit items, flashing items are changed using the to back up
or
<
- +
Configuration Menu Locked
Press > to enter
+ MENU
< + - <
< - +
+ < -
+ <
MENU
+
< Push until appears, then press
use
Push to change timer name, then press to advance
Next set Timer speed use / then press
use / to modify start time, then to adjust end
Push to view schedule days, use / to modify, then
To save changes, press
Repeat this process until all desired timers are set
to exit, and then
to review
to save
to modify
Timers Menu Press > to enter
Timer1 1725rpm
12:00a to 11:45p 7D
Timer1 1725rpm
+/- adjust; times>
Timer1 1725rpm
12:00a to 11:45p
QUICK REFERENCE GUIDE
www.hayward.com or call 1-844-365-6442
QRG3206VSP (Rev C)
Hayward is a registered trademark of Hayward Industries, Inc. © 2018 Hayward
Industries, Inc.
Connecting Pump to Hayward Automation
Existing user interface wiring connection (if present) should be
unplugged & second terminal block connector should be used to
make comm wiring connection
Hayward
Controller
Pump
+12V
ON
1 2 3 4 5
A
2 3 4
COM
Dip Switches
Dip Switches
PUMP ADDRESS #1 #2 #3 #4 #5 B
Pool Filter
Aux 1 / Spa Filter ON
Aux 2 ON
Aux 3 ONON
Aux 4 ON
Aux 5 ON ON
Aux 6 ON ON
Aux 7 ON ON ON
Aux 8 ON
Aux 9 ON ON
Aux 10 ON ON
Aux 11 ON ON ON
Aux 12 ON ON
Aux 13 ON ON ON
Aux 14 ON ON ON
Lights Button ON ON ON ON
Consult controller manual for compatibility AND to select appropriate pump address
*NOTE: If connecting pump to an OmniLogic or VS Omni, omit step 2
(shown above); instead, follow 2b-2d (shown below):
1. Connect with 18 gauge (300V), two conductor, shielded cable
*2. Set pump DIP switches to match automation system configuration

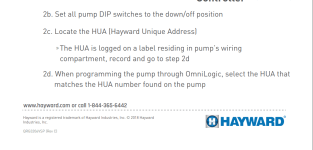

2d. When programming the pump through OmniLogic, select the HUA that matches the HUA number found on the pump
2c. Locate the HUA (Hayward Unique Address)
2b. Set all pump DIP switches to the down/off position
The HUA is logged on a label residing in pump’s wiring compartment, record and go to step 2d
Note: Pump should be wired to line side power
*NOTE: Always attach drain wire between COM (pump) & terminal 4 (controller)
»
»
