Wiring SWG to auxiliary on Jandy VS pump

[Mexicant11]

I am considering wiring my CircuPool RJ 60 to my Jandy VS pump to come on when the pump comes on. Per the Jandy manual, it looks like I could use one of the two auxiliary relays. Does this wiring schematic seem doable? The most difficult thing would be adding the GFCI breaker to my pool pad panel. I just want to confirm that I would use 2 20 amp breakers at the panel for line 1 and line 2 in lines. The black and white from the CircuPool would be my load 1 and load 2 wires, and the blue would be the ground (according to the CircuPool rep). Any recommendations and advice are welcomed. Thanks in advance.



[JamesW]

Just get 240 volts from the pump power supply.



[Lineman7]

Wire your SWG to Aux 1. Aux will become hot @ 1725rpm. No need for GFCI if your pump is GFCI protected. I'm on my way home. I'll take a picture of how mine is wired. Give me 30mins



[JamesW]

Help me hook up my Edge40, please.

I will document them when i am back home

www.troublefreepool.com

I piggy backed LINE 1-2 and jumper over to AUX LINE 1-2.

Help me hook up my Edge40, please.

I will document them when i am back home

www.troublefreepool.com



[Lineman7]

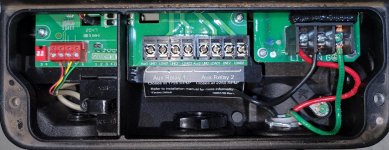

James is on it. Here is more photos for reference. And….. yes I have grass issues. Lol
