Wiring schematics

RicDedrick

New member
Oct 3, 2020
1
Southern Ontario
My 1 hp Hayward pump is single speed dual voltage. I prefer to run it on 230volts but the wiring schematics doesn't show the neutral connection. To achieve 230v, I need two 120v feeds, a neutral and a ground. Where on the pump does the neutral connect?


Dirk

Gold Supporter
TFP Guide
Nov 12, 2017
7,741
Central California
Pool Size
12300
Surface
Plaster
Chlorine
Salt Water Generator
SWG Type
Pentair Intellichlor IC-40
Hi, and welcome to TFP! While others here will likely be able to help you with your wiring, I instead will try to sneak in ahead of them to advise you to seek a professional when it comes to pool wiring. It's not like indoor house wiring, and the consequences for getting it wrong are much more severe. Find a licensed electrician that specializes in pool wiring. Not all electricians or even pool contractors know everything they're supposed to when it comes to a pool. Hint: wiring for 220 and asking about the neutral is a red flag that you're not quite up-to-speed on even basic house wiring, let alone pool wiring. Pardon me if that sounds rude, as that is not my intent. Good luck, be careful.

By the way, as others might ask, why do you think you need to swhich to 230? That's not likely going to help your pump or its performance in any way.

Last edited:

JamesW

TFP Expert
Mar 2, 2011
21,549
My 1 hp Hayward pump is single speed dual voltage. I prefer to run it on 230volts but the wiring schematics doesn't show the neutral connection. To achieve 230v, I need two 120v feeds, a neutral and a ground. Where on the pump does the neutral connect?
A neutral is not required for 230.

  • Like
Reactions: drsipe

Bama Rambler

Mod Squad
TFP Expert
Bronze Supporter
LifeTime Supporter
Jun 22, 2009
24,179
SouthWest Alabama
As James eluded to, on 230 volt equipment that doesn't require 120 volts for controls, etc., they don't need a neutral. They only require L1, L2, and ground.

  • Like
Reactions: HermanTX

ajw22

Gold Supporter
TFP Guide
Jul 21, 2013
21,205
Northern NJ
Pool Size
35000
Surface
Plaster
Chlorine
Salt Water Generator
SWG Type
Pentair Intellichlor IC-60
By the way, as others might ask, why do you think you need to which to 230? That's not likely going to help your pump or its performance in any way.
A SS dual voltage pump RPM is limited at 120V to not pull excessive amps. You get max performance out of such a pump when run on 240V. Not that most pools need max pump performance.


Dirk

Gold Supporter
TFP Guide
Nov 12, 2017
7,741
Central California
Pool Size
12300
Surface
Plaster
Chlorine
Salt Water Generator
SWG Type
Pentair Intellichlor IC-40
A SS dual voltage pump RPM is limited at 120V to not pull excessive amps. You get max performance out of such a pump when run on 240V. Not that most pools need max pump performance.
That would seem to contradict the following post by @mas985, along with a quick look at a list of Hayward pump specs I just found, indicating there is no HP difference between voltages, but that's all I know about this subject. Where can I find the information you're referencing, as I'm curious? More importantly, if the OP doesn't have any actual need to go to 240, especially if the performance will be the same (or adequate for his pool), then why bother?

#6


mas985

TFP Expert
LifeTime Supporter
May 3, 2007
13,825
Pleasanton, CA
Pool Size
20000
Surface
Plaster
Chlorine
Salt Water Generator
Other than the supply wiring gauge requirements, there is no difference between a pump wired at 120v vs 240v.

  • Like
Reactions: Dirk

JamesW

TFP Expert
Mar 2, 2011
21,549

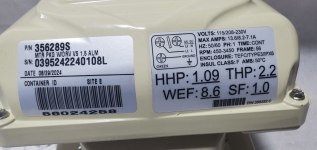

A SS dual voltage pump RPM is limited at 120V to not pull excessive amps. You get max performance out of such a pump when run on 240V. Not that most pools need max pump performance.

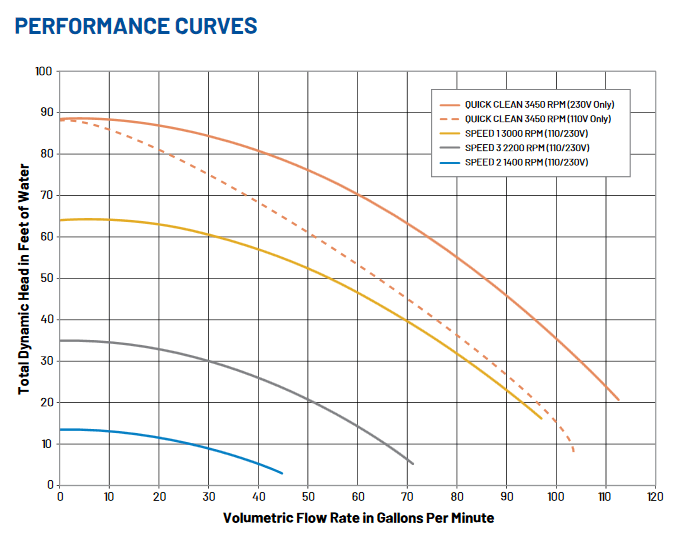

I suspect that you meant a variable speed pump will limit the amps at 115 volts vs. 230 volts, which is what happens with the Superflo vs.

From the manual, the maximum amps at 115 volts is 13.2. So, that limits the watts to 1,518.

The maximum amps at 230 volts are 11.5. So, that limits the watts to 2,645.

The pump must be reducing the rpm as needed to keep the amp draw below 13.2 when the voltage is 115.





ajw22

Gold Supporter
TFP Guide
Jul 21, 2013
21,205
Northern NJ
Pool Size
35000
Surface
Plaster
Chlorine
Salt Water Generator
SWG Type
Pentair Intellichlor IC-60
I suspect that you meant a variable speed pump will limit the amps at 115 volts vs. 230 volts, which is what happens with the Superflo vs.

From the manual, the maximum amps at 115 volts is 13.2. So, that limits the watts to 1,518.

The maximum amps at 230 volts are 11.5. So, that limits the watts to 2,645.

The pump must be reducing the rpm as needed to keep the amp draw below 13.2 when the voltage is 115.



Yup, that is what I remembered. VS pumps, not SS pump performance varies depending on voltage.

  • Like
Reactions: JamesW

mas985

TFP Expert
LifeTime Supporter
May 3, 2007
13,825
Pleasanton, CA
Pool Size
20000
Surface
Plaster
Chlorine
Salt Water Generator
From what I remember most VS pumps that come in dual voltage don't behave that way. The Superflo and I think there is one other that may do that.


JamesW

TFP Expert
Mar 2, 2011
21,549
These Jandy pumps limit the power on 115 volts.

VSFHP270DV2A. 2.7 hp.

230 VAC. 10.5 amp. 2,550 watts.

115 VAC. 16.0 amps. 1,840 watts.

VSPHP270DV2A. 2.7 hp.

230 VAC. 10.5 amp. 2,250 watts.

115 VAC. 16 amps. 1,840 watts.
