Pool lights not working

Moe 103

Member
Jun 17, 2020
12
New Jersey
Pool Size
38000
Surface
Vinyl
Chlorine
Salt Water Generator
SWG Type
Pentair Intellichlor IC-60

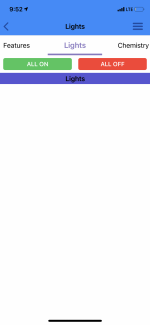

I have two in-pool lights that I can’t turn on from my Pentair app. I have the IntelliCenter and when I go to the light section and turn on all on, nothing happens.

I reset the GFI with no change. Am I missing the lights as there is no lights in the menu? How does the IntelliCenter know where my lights are? Should there be a circuit (aux) labeled lights?

Thank you


Attachments

  • 483E92F9-36C8-4B6E-AF34-BBC5311703B0.png
    299.5 KB · Views: 4

ajw22

Gold Supporter
TFP Guide
Jul 21, 2013
24,667
Northern NJ
Pool Size
35000
Surface
Plaster
Chlorine
Salt Water Generator
SWG Type
Pentair Intellichlor IC-60
Did you create an Aux circuit for the light?

What did you set for the Circuit Function for the Aux circuit the lights ia connected to?


Jimrahbe

Mod Squad
TFP Expert
LifeTime Supporter
Jul 7, 2014
21,153
Bedford, TX
Moe,

Your lights should be listed on the light page..

If nothing is listed, nothing will turn on.

Who programmed your IntelliCenter?

Show us a screenshot showing all your Circuits..

Thanks,

Jim R.


Moe 103

Member
Jun 17, 2020
12
New Jersey
Pool Size
38000
Surface
Vinyl
Chlorine
Salt Water Generator
SWG Type
Pentair Intellichlor IC-60

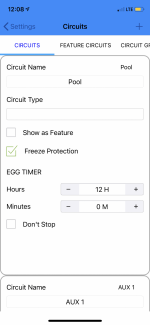

I did not create an AUX circuit for the lights. Do I need to know which one the lights are hooked up to?


Attachments

  • 334C219F-08C4-4E33-BEFE-DB9FF94A57CB.png
    318.9 KB · Views: 1
  • C1DB4D17-57F4-4092-8AB2-5422AFAD27DA.png
    650.3 KB · Views: 1
  • 840CBCB8-B25D-438D-9097-4147C4E5C53A.png
    320.9 KB · Views: 1
  • 7A1C5789-47C1-467D-A367-7824D3EE2941.png
    322.8 KB · Views: 1
  • 87DAF9FE-29F3-41FD-9B35-9AFB4FB4E516.png
    316 KB · Views: 1

ajw22

Gold Supporter
TFP Guide
Jul 21, 2013
24,667
Northern NJ
Pool Size
35000
Surface
Plaster
Chlorine
Salt Water Generator
SWG Type
Pentair Intellichlor IC-60
I did not create an AUX circuit for the lights. Do I need to know which one the lights are hooked up to?

Yes, you need to tell the IntelliCenter which Aux relay controls the light.


Moe 103

Member
Jun 17, 2020
12
New Jersey
Pool Size
38000
Surface
Vinyl
Chlorine
Salt Water Generator
SWG Type
Pentair Intellichlor IC-60
So there should be a wire from the circuit breaker that controls the light that connects to an AUX, because I don’t see one. There is a wire into the breaker labeled lights but nothing coming out of it.


Moe 103

Member
Jun 17, 2020
12
New Jersey
Pool Size
38000
Surface
Vinyl
Chlorine
Salt Water Generator
SWG Type
Pentair Intellichlor IC-60
The bottom breaker is for the lights but I don’t see anything connecting it to an AUX.


Attachments

  • 469E0A5A-56DC-4F12-9A0A-F050EEC23EF1.jpeg
    184.8 KB · Views: 6
  • 10942FA8-B081-4C2C-A451-F9B0CDB462D7.jpeg
    472.8 KB · Views: 6

ajw22

Gold Supporter
TFP Guide
Jul 21, 2013
24,667
Northern NJ
Pool Size
35000
Surface
Plaster
Chlorine
Salt Water Generator
SWG Type
Pentair Intellichlor IC-60
The bottom breaker is for the lights but I don’t see anything connecting it to an AUX.

The light CB power runs to the GFCI outlet LINE side. The GFCI LOAD side connects to the second Aux relay from the left LINE1. Your light comes up and connect to the relay LOAD2 screw.

  • Like
Reactions: Moe 103

Moe 103

Member
Jun 17, 2020
12
New Jersey
Pool Size
38000
Surface
Vinyl
Chlorine
Salt Water Generator
SWG Type
Pentair Intellichlor IC-60
Thank you everyone for your help. The lights are on AUX 1. I set AUX 1 in circuits to lights and they work. Yay.

  • Like
Reactions: Jimrahbe
