Pool is running a Aqua logic system and I keep getting a no cell power fault. I’ve ran through the troubleshooting guide and I’m not getting any power in the orange wires to the rectifiers. I’ve already replaced the board and rectifiers and still no luck. Any help would be greatly appreciated.
No cell power - Aqualogic
- Thread starter Rob521
- Start date
- May 3, 2007
- 16,828
- Pool Size
- 20000
- Surface
- Plaster
- Chlorine
- Salt Water Generator
- SWG Type
- Hayward Aqua Rite (T-15)
Welcome to the forum!
Are you getting the correct AC voltage across the yellow transformer wires? If not, it could be the transformer. If you are, then there is still a problem with the board.
Are you getting the correct AC voltage across the yellow transformer wires? If not, it could be the transformer. If you are, then there is still a problem with the board.
- Jul 21, 2013
- 52,204
- Pool Size
- 35000
- Surface
- Plaster
- Chlorine
- Salt Water Generator
- SWG Type
- Pentair Intellichlor IC-60
Welcome to TFP.
Check if you have a fuse on the bottom of the cabinet.
Post pics of the board and cabinet so we can see the wiring.
Check if you have a fuse on the bottom of the cabinet.
Post pics of the board and cabinet so we can see the wiring.
Yes the voltage in the yellow wires is good and I was told the transformer is also relatively new.
- Jul 21, 2013
- 52,204
- Pool Size
- 35000
- Surface
- Plaster
- Chlorine
- Salt Water Generator
- SWG Type
- Pentair Intellichlor IC-60
What is the voltage from one yellow wire to the other yellow wire?
What is the voltage from one orange wire to the other orange wire?
The voltage is AC, so make sure that your meter is set to AC and not DC.
Check the yellow 20 amp fuse.
This orange wire connector looks weird, make sure that the connectors are OK.
Disconnect the orange wires and test the voltage from the terminals.
This orange wire connector looks weird, make sure that the connectors are OK.
Disconnect the orange wires and test the voltage from the terminals.
The fuse is brand new and good. The orange wires are also new with the board. Getting no voltage from the terminals and I’m getting 23 volts out of the yellow wires.

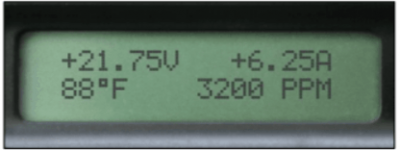

Go to the diagnostic screen and press the + button to reverse polarity and see what the numbers show.
Then, press the + button again and see what the numbers show.
Then, press the + button again and see what the numbers show.
If the rectifiers were bad when you installed the new board, the fuse might have tripped.
Replace the fuse just to be sure.
It's a standard fuse available at any general store, automotive store, hardware store etc.
Replace the fuse just to be sure.
It's a standard fuse available at any general store, automotive store, hardware store etc.
Not sure what changed but I seem to be up and running. Thank you.
