Need advice on deck framing - Oval Pool

mgmercurio

Well-known member
Jun 22, 2020
45
Louisville, Kentucky
I have attached a picture of the framing blueprint for my deck/pool design. I have been watching many many youtube videos trying to get a clear understanding of how to lay out the extra posts, joists, and beams needed to run decking all the way under the top rail, around my oval pool. My paticular interest is in how to frame around the curved portions of the oval. I realize I am going to most likely cantelever the joists under the top rail on the pool side of the deck. I am just not sure how to place my posts, beams, and joists to do it.

Two things about my deck design are:
1. The frame construction calls for posts to be flush with joists.
2. I am also going to do a "2-board picture-frame" the deck. The reason for the picture frame is because I would rather have 2 long running decking boards on the inside next to the pool running along with the pool's edge vs. many perpendicular deck boards up against the pool's edge. In the event I need to work on the pool or replace the liner, it will be much easier to remove two boards verses many. ;)

I realize this is more of a deck question then it is a pool question, and I apologize if this is not the right forum to ask, but I have tried to find an answer to this and it has not been easy. Anyway, any help from the experts would be greatly appreciated.

Thanks,
Matt


Attachments

  • joists-pool.png
    54.9 KB · Views: 24

Dirk

Gold Supporter
TFP Guide
Nov 12, 2017
8,624
Central California
Pool Size
12300
Surface
Plaster
Chlorine
Salt Water Generator
SWG Type
Pentair Intellichlor IC-40
Sorry, I couldn't follow along with all that you were describing, but I think this is pretty simple. Are those 4x6 beams running around the entire perimeter of the deck (or 4x8 or 2x8 or whatever)? Use the same dimension lumber and cut three lengths with 45° miter cuts on each end, and bolt them to the beams, one beam in each of the three corners. Then cantilever the deck boards out over the resulting framing to meet your pool's shape. If you don't like the span, then add a second 45° joist inside each of the triangles.

You shouldn't need any posts under them, they'll be plenty strong enough. You could even add some ties if you're feeling' it.


Last edited:
  • Like
Reactions: jimmythegreek

mgmercurio

Well-known member
Jun 22, 2020
45
Louisville, Kentucky
Sorry, I couldn't follow along with all that you were describing, but I think this is pretty simple. Are those 4x6 beams running around the entire perimeter of the deck (or 4x8 or 2x8 or whatever)? Use the same dimension lumber and cut three lengths with 45° miter cuts on each end, and bolt them to the beams, one beam in each of the three corners. Then cantilever the deck boards out over the resulting framing to meet your pool's shape. If you don't like the span, then add a second 45° joist inside each of the triangles.

You shouldn't need any posts under them, they'll be plenty strong enough. You could even add some ties if you're feeling' it.

View attachment 161177
Thank you! This is exactly what I needed. Your illustration hits it spot on. My Rim joists that run all the way around the perimeter will be 2x8's. Your explanation makes perfect since. Plus I had no clue they made 45 degree joist hangers. ;) Do you think the hangers will be strong enough to support the cantelevered joists or should I plan to place posts under the beam where the 45 degree joist hangers will go?

Thanks again.
Matt


Dirk

Gold Supporter
TFP Guide
Nov 12, 2017
8,624
Central California
Pool Size
12300
Surface
Plaster
Chlorine
Salt Water Generator
SWG Type
Pentair Intellichlor IC-40

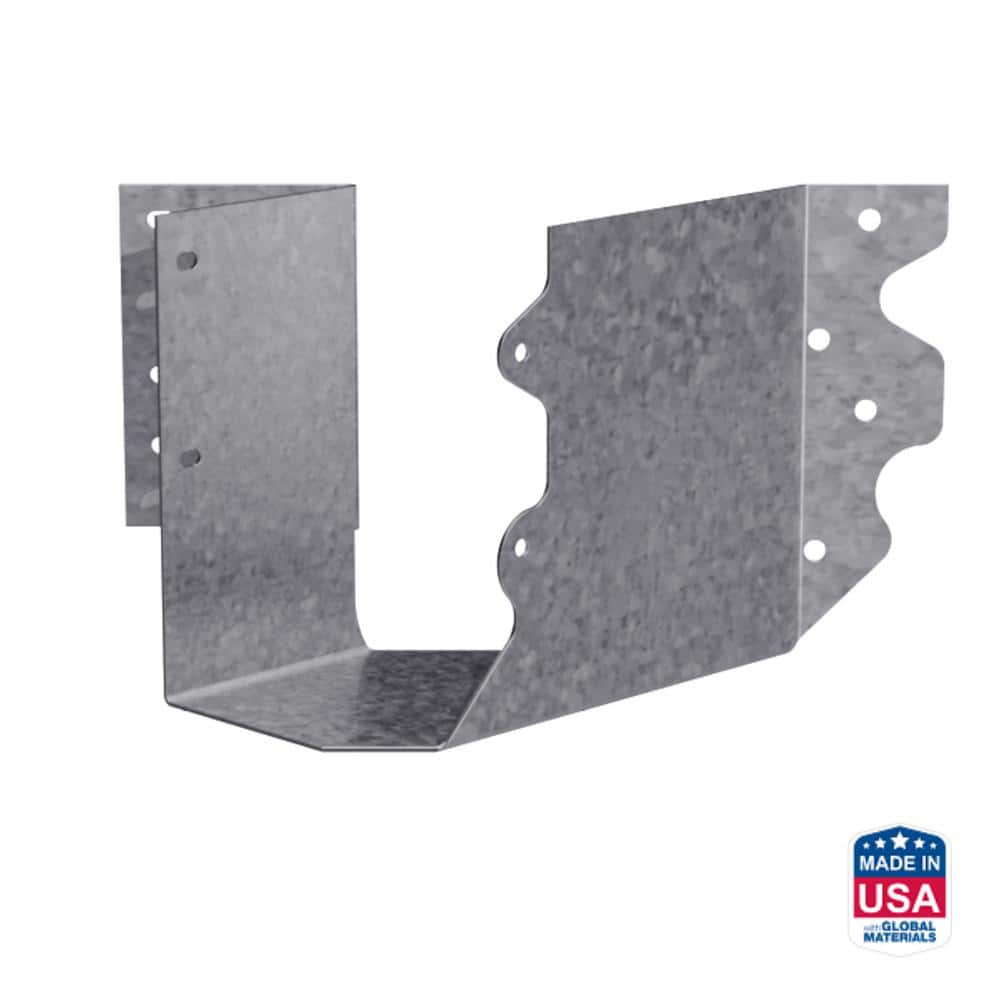

I tried to find a pic of a 45 hanger, but couldn't. Not sure they are made, as they would be pretty hard to nail in. Maybe there are. But there will be some type of tie that you can use. And/or use bolts for added strength. I wouldn't bother with the extra posts. But they certainly wouldn't hurt anything. I tend to over build, nothing wrong with that. Another way to look at it: you're not parking a car up there. It's not going to support a bath tub or a refrigerator. What is the square footage of that triangle? How many people could you cram in there if you tried? Point is: there's just not going to be enough weight on there to warrant more posts, not with as many as you've already got.


Dirk

Gold Supporter
TFP Guide
Nov 12, 2017
8,624
Central California
Pool Size
12300
Surface
Plaster
Chlorine
Salt Water Generator
SWG Type
Pentair Intellichlor IC-40

gb99

LifeTime Supporter
Jun 15, 2013
118
Boston, MA
mgmercurio: is this decking for an inground pool? If so, please post pictures of your progress as I'd like to do this for my inground pool in the future!


Dirk

Gold Supporter
TFP Guide
Nov 12, 2017
8,624
Central California
Pool Size
12300
Surface
Plaster
Chlorine
Salt Water Generator
SWG Type
Pentair Intellichlor IC-40
Just to be clear, these angled joists are not cantilevered. They're connected and supported at each end. I was referring to the deck boards. They'll be cantilevered a bit past your framing to meet the curve of the pool walls.


Dirk

Gold Supporter
TFP Guide
Nov 12, 2017
8,624
Central California
Pool Size
12300
Surface
Plaster
Chlorine
Salt Water Generator
SWG Type
Pentair Intellichlor IC-40
If you're decking is 2x wood lumber, the cantilever will be fine. If you're using composite lumber (like 1" Trex or similar), then you might get a little flex on some of the ends. If so, and if you're feeling industrious, you could add six more angled 2x8s to bring the framing even closer to the curved pool wall. But those will be tough to nail in. Bolts might work, depending on clearance. You can always add them later, if the longest cantelever doesn't feel stiff enough. I can draw that for you, if you need.


mgmercurio

Well-known member
Jun 22, 2020
45
Louisville, Kentucky
mgmercurio: is this decking for an inground pool? If so, please post pictures of your progress as I'd like to do this for my inground pool in the future!
It is for a 15x30x52 Aquasport above ground pool which I am burying 24' in the ground. I am going to leave roughly 28" above ground so I can build a pool-side bar on top of the stone wall that will abut to the exposed pool wall. I am not sure this helps you, but I can post pics of the progress ;)


Enjoying this content?

Support TFP with a donation.

Give Support

mgmercurio

Well-known member
Jun 22, 2020
45
Louisville, Kentucky
If you're decking is 2x wood lumber, the cantilever will be fine. If you're using composite lumber (like 1" Trex or similar), then you might get a little flex on some of the ends. If so, and if you're feeling industrious, you could add six more angled 2x8s to bring the framing even closer to the curved pool wall. But those will be tough to nail in. Bolts might work, depending on clearance. You can always add them later, if the longest cantelever doesn't feel stiff enough.
Completely understood...and yes I meant to say cantelevered decking....not joists ;) You are correct, I cant imagine craming a whole lot of people on that curved space. However, I am planning for a 60PSI live load. I am planning to build a covered bar with seating on top of the deck, plus there will be a place for eating as well as a few sunbathing lounge chairs. Yes..as you can imagine, I am planning to have large entertaining parties on this deck...so I expect there may be a large load at times. ;)


mgmercurio

Well-known member
Jun 22, 2020
45
Louisville, Kentucky
It is for a 15x30x52 Aquasport above ground pool which I am burying 24' in the ground. I am going to leave roughly 28" above ground so I can build a pool-side bar on top of the stone wall that will abut to the exposed pool wall. I am not sure this helps you, but I can post pics of the progress ;)
I meant 24" not 24' lol


Dirk

Gold Supporter
TFP Guide
Nov 12, 2017
8,624
Central California
Pool Size
12300
Surface
Plaster
Chlorine
Salt Water Generator
SWG Type
Pentair Intellichlor IC-40
One thing I might do differently, I'd use 4x6 or 4x8 beams. I'd set those on top of the posts (with proper metal ties) instead of bolting 2x8s to the sides of the posts. And I'd set the joists on top of those. There is nothing wrong with the way you're doing it, especially for a deck. But you started to talk about loads, and what I'm describing is the stronger, longer-lasting way. Plus, you could use significantly less posts and hangers.

The rule of thumb I use: I picture the framing without nails to gauge how it will hold up! Wood that sits on top of other wood only needs nails and bolts and ties to keep it from sliding off. Wood that is connected next to other wood relies on the fasteners to support the weight, which is not as strong. You add some rust and termites to the mix, a little dry rot, and the "next to" framing will fail sooner.

Sometimes you don't have enough clearance for all that extra height, so you go with what you've designed. If there is enough metal (joist hangers), then that will be plenty strong. And I'm talking in terms of decades out. Though the pool water environment will not be kind to the hangers.

Last edited:

Dirk

Gold Supporter
TFP Guide
Nov 12, 2017
8,624
Central California
Pool Size
12300
Surface
Plaster
Chlorine
Salt Water Generator
SWG Type
Pentair Intellichlor IC-40

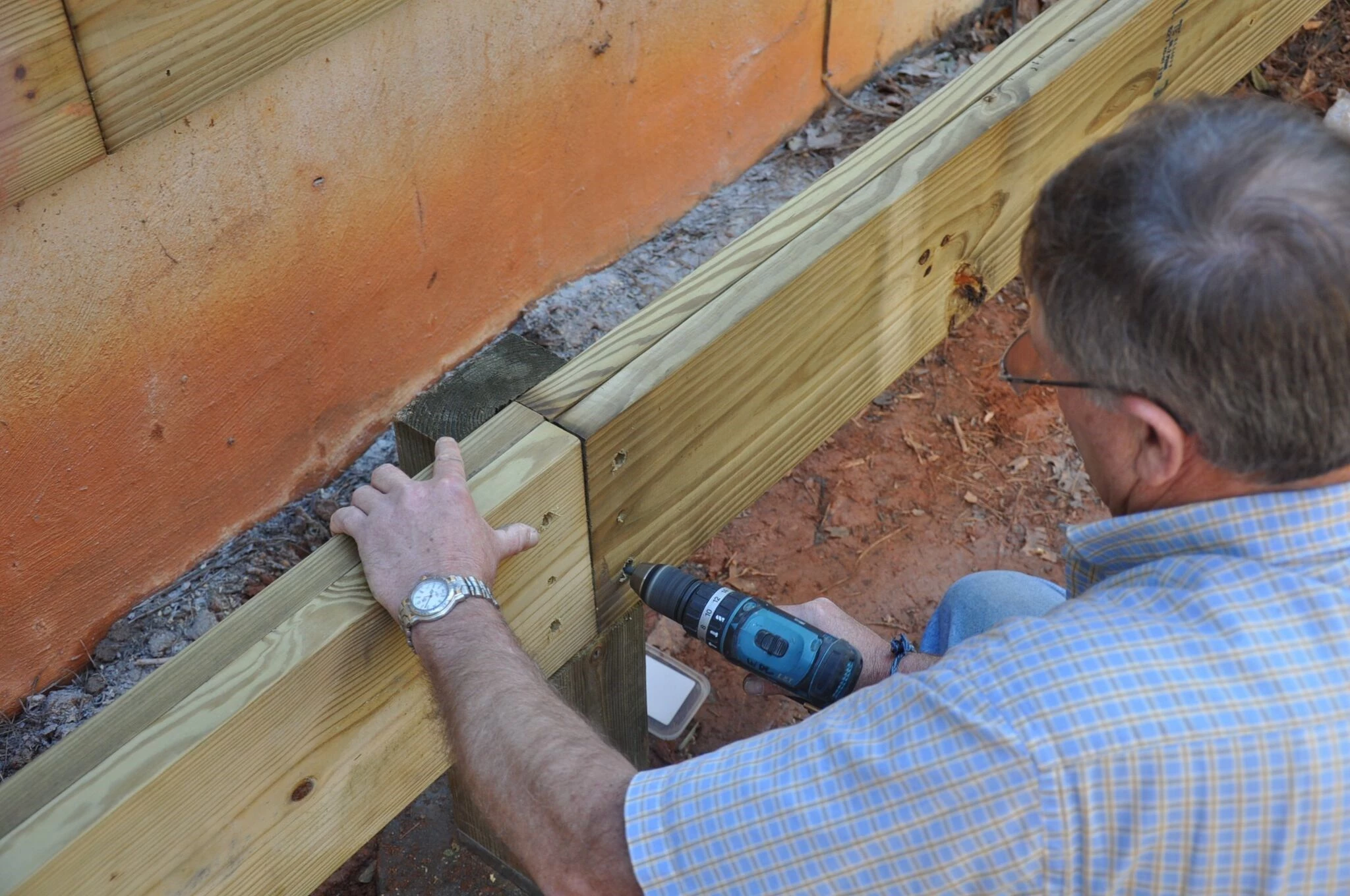

I couldn't find a good pic of the ties you would use: at the post/beam intersections, post/pier intersections and even the joist/beam intersections if required. But this is the concept:
