Is this plumbing correct for Spa Spillover

ChristopherDB

Gold Supporter
In The Industry
Apr 21, 2021
63
Florida
Pool Size
16000
Surface
Plaster
Chlorine
Salt Water Generator
SWG Type
Jandy Aquapure 1400

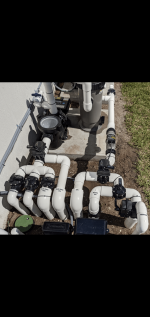

Hi all, really appreciate the help on this new pool build. The builder is claiming that the spa spillover should always be on but I'd rather not have it running all day long. I'd like to setup the iAquaLink automation for spillover mode. If I set the dip switch 3 to spillover I can operate the return JVA independently to achieve this but the way it's plumbed, the spillover still operates because water still gets sent to the spa drain. Is the plumbing in the attached photo correct? If so, should I shutoff the spa return with the manual 3 way valve? If I do this, then when spillover is enabled, the actuator turns 180 and shuts off the returns of the pool completely and all water is pushed through the spa jets. Would that be correct, or should some water still return to the pool? Also, if I do that and put the spa in spillover mode, then all water would return to the spa jets, but there is no check valve on that line so the raised spa will drain if I shut off the pump without turning off the spillover to turn the actuator back to the position shown in the photo to block the spa jets. Is that also an issue? Thanks!


Last edited:

mknauss

Mod Squad
TFP Expert
Bronze Supporter
May 3, 2014
42,042
Laughlin, NV
Pool Size
6000
Surface
Fiberglass
Chlorine
Salt Water Generator
SWG Type
Pentair Intellichlor IC-40
Is the plumbing in the attached photo correct? If so, should I shutoff the spa return with the manual 3 way valve?
Yes, the plumbing is correct. If you shutoff the spa return on the manual valve, the continuous spillover will stop.
Would that be correct, or should some water still return to the pool?
That is correct. If your pump and automation allows, you should be able to change the pump rpm when in spillover mode.
spa will drain if I shut off the pump without turning off the spillover to turn the actuator back to the position shown in the photo to block the spa jets. Is that also an issue?
True -- but do the spillover schedule such that each day you are in pool mode at shutdown. The the valve will be closed to the spa side of the actuated valve and the spa will not drain.


Jimrahbe

Mod Squad
TFP Expert
LifeTime Supporter
Jul 7, 2014
22,224
Bedford, TX
Chris,

The line labeled "Return Spa" is what makes the spa constantly spillover into your pool. Just shut it off.

In the Spillover mode, the water is sucked from the pool and all of it is sent to the spa... This mode is not really designed to run all the time.. You would normally just schedule it an hour of so per day just to keep your spa chlorinated.. You would also manually run it just to show off the spillway to guests.

You could add a check valve to the spa line, but I would just not schedule the pool to shut off with the system in the Spillover mode.

My pool turns on and shuts off automatically on a schedule.. I never just turn it off.. Well, unless I'm going to do some maintenance.

Thanks,

Jim R.


ChristopherDB

Gold Supporter
In The Industry
Apr 21, 2021
63
Florida
Pool Size
16000
Surface
Plaster
Chlorine
Salt Water Generator
SWG Type
Jandy Aquapure 1400
Wow you guys rock! Thanks so much for the thorough response. I got everything setup today and working almost perfectly. I'm just having issues now with the VSP automatically changing RPM when going into spillover mode. When I change to spillover the RPM stays at the same Speed #1 from the VSP Speed setup. The spillover is Speed #4 which is a lower speed but when spillover is enabled, the speed does not change. AUX3 is not an option to assign to it but from my understanding it is not necessary to assign because spillover and cleaner are hard codes to their respective speed settings. When enabling the cleaner it automatically increases to the cleaner speed, which is Speed #3 so why doesn't the spillover automatically change speed as well?

I did notice that if the pump is off and I turn on spillover then the pump turns on automatically and adjusts to the correct spillover speed, but if the pump is already on and then I turn on the spillover then the speed doesn't correctly adjust.

Thanks!

Last edited:

mknauss

Mod Squad
TFP Expert
Bronze Supporter
May 3, 2014
42,042
Laughlin, NV
Pool Size
6000
Surface
Fiberglass
Chlorine
Salt Water Generator
SWG Type
Pentair Intellichlor IC-40
When you have multiple circuits scheduled at same time, the one with the highest rpm wins. So your base rpm should be the lowest, then use higher rpm, if necessary, for other functions, such as spillover.


ChristopherDB

Gold Supporter
In The Industry
Apr 21, 2021
63
Florida
Pool Size
16000
Surface
Plaster
Chlorine
Salt Water Generator
SWG Type
Jandy Aquapure 1400
Hi all,

My pool contractor is saying by shutting off the manual spa return valve (allowing me to control when spillover is on/off via the JVA so it doesn't always stay on all the time) that because water will be pushing through the jets of the spa, rather than the spa return drain, when operating spillover it is causing unnecessary strain on the motor.

My question is, do most spas not even have a return drain and how much efficiency am I losing by doing this? I'm being told they always configure their pools so the spillover is always operating unless in spa mode, but I don't want my spillover operating 100% of the time.

Thanks,
Christopher


mknauss

Mod Squad
TFP Expert
Bronze Supporter
May 3, 2014
42,042
Laughlin, NV
Pool Size
6000
Surface
Fiberglass
Chlorine
Salt Water Generator
SWG Type
Pentair Intellichlor IC-40
when operating spillover it is causing unnecessary strain on the motor.
That is a, wrong. You can adjust the rpm of the pump such that you get a sufficient flow but nothing close to when using the spa. And you will only do it for 30 minutes or less once or twice a day.


ChristopherDB

Gold Supporter
In The Industry
Apr 21, 2021
63
Florida
Pool Size
16000
Surface
Plaster
Chlorine
Salt Water Generator
SWG Type
Jandy Aquapure 1400
Thank you @mknauss , much appreciated. This is exactly why I had to take control of the automation part because nobody here appears to know how to correctly automate.

Since it is an 8ft spillover I have to operate at 1700RPM for a uniform spillover. That is without the jet nozzles screwed into the pipe because the builder has not provided them yet. Would it be safe to assume once those jets are installed I may need to bump up the RPM?


Enjoying this content?

Support TFP with a donation.

Give Support

mknauss

Mod Squad
TFP Expert
Bronze Supporter
May 3, 2014
42,042
Laughlin, NV
Pool Size
6000
Surface
Fiberglass
Chlorine
Salt Water Generator
SWG Type
Pentair Intellichlor IC-40
Maybe, but I doubt it. At the low rate, I doubt they exhibit much additional back pressure.

  • Like
Reactions: ChristopherDB

Jimrahbe

Mod Squad
TFP Expert
LifeTime Supporter
Jul 7, 2014
22,224
Bedford, TX
Chris,

Your pool builder is just an idiot!!!

If you shut off the spillover, no water will be going to the spa when in the pool mode.

When in the spa mode the spillover is off any way.. So I have no clue what he is trying to say..

Thanks,

Jim R.


Exthinker

In The Industry
Jun 3, 2021
1
USA
It looks pretty good. For a Spa salon, you won't need a special plumbing system. If you take care of it and won't throw garbage in the sewage system, everything will be OK. I worked in a beauty salon where workers were throwing people's cutting hair in the sewage system. With time, the hair broke, and we couldn't do anything with it. We stopped the work of the salon for a whole day. Finally, we called a company that gives plumbing services, and in just a few hours repaired everything, and advised not to throw hair again in the sewage system.
